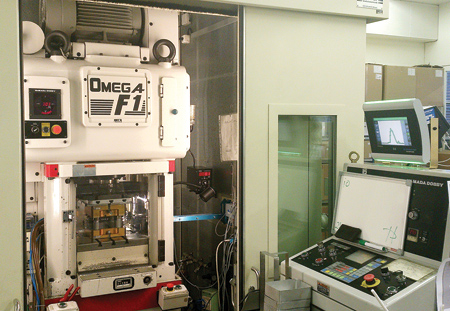

Brankamp Series of Press Monitoring Systems



Marposs offers its family of Brankamp in-process real-time monitoring systems for stamping operations, suited for a wide range of press sizes from 40 to 2,500 tons.

"The trend toward lightweight construction and increasing part complexity can result in higher deformation levels," said a company spokesperson. "These units help to immediately identify manufacturing faults and automatically compensate for variation in sheet thickness, material hardness, tool and machine temperature, speed, etc., during the manufacturing process. This enables manufacturers to optimize machine efficiency, improve part quality and limit unplanned downtime and tooling costs."

How Brankamp Systems Work

Appropriate sensors (forces, ultra-emission, structure-borne sound, distance, temperature, binary) are positioned in either the machine or the dies to convert mechanical deformation into electrical signals that monitor tool and machine performances from applied forces. Using an adaptive pattern recognition process, the system learns the correct sensor signal profile for a given cycle. If the signals match the learned curve, the process is continuously observed, recording data for supervision of production, batch size, runtime behavior and process trend aiming higher line efficiency. If the signal moves outside of the recognized envelope curve, the system informs the operator of the specific type, cause and location of the fault. If necessary, the system also triggers an emergency switch to stop the machine or sort out the defective part.

Brankamp Models

The X3, with a high resolution 9" touch display, is used for process monitoring to enhance or optimize the process and improve part quality, providing a positive effect on overall equipment effectiveness.

The Brankamp X5 is suited for machine and tool protection, process monitoring and process failure detection, as well as for optimizing process and part quality. It features a 12" touchscreen and eight channels for monitoring maximum forces, envelope curves and trend progressions. Additionally, six zoom channels offer detailed monitoring of specific, sensitive process areas such as distorted parts or a short feed.

The X7 provides machine and tool protection, process monitoring and process failure detection, as well as optimization of process and part quality. It features a 15" touchscreen and up to 24 channels for monitoring maximum forces, envelope curves and trend progressions, as well as run times, set-up times and downtime, or sensitive process areas such as distorted parts or a missed feed.

Brankamp solutions are compatible with high-speed, large-part transfer, notching, drawing, coining, multistation and fineblanking presses, as well as automatic punching and stamping/bending machines.

For more information contact:

Marposs Corporation

3300 Cross Creek Parkway

Auburn Hills, MI 48326

248-370-0404

marposs@us.marposs.com

www.marposs.com

www.brankamp.com
