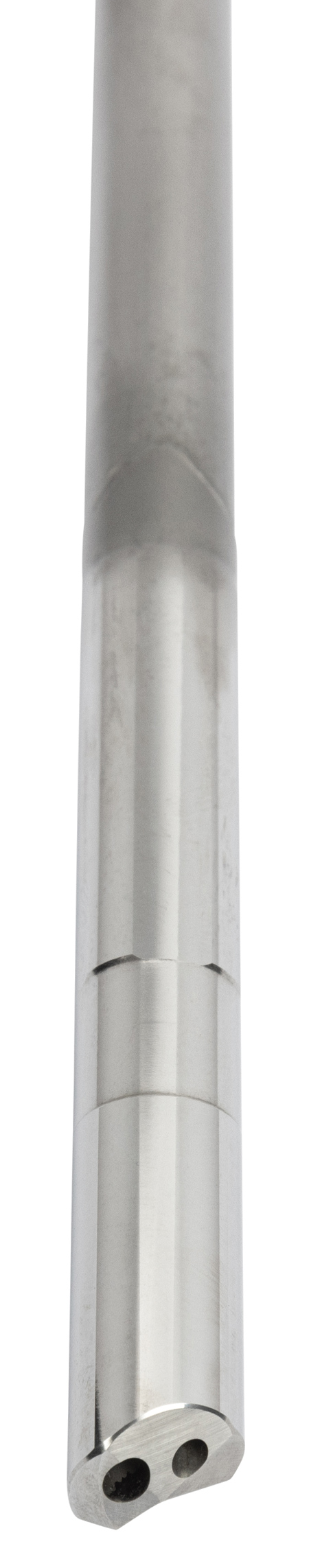

Double Contour Gundrill with Extended Carbide Head
April 1, 2024
Star SU, part of the Star Cutter family of companies, offers its Custom-Designed Double Contour Single Flute Gundrill with an extended carbide length head. This tool design is engineered to reduce tool drift for the length of the cut, providing enhanced TIR readings from entry of the part to the exit.
The machining improvements are achieved by a special cutting drill contour with an added rear contour configuration that acts like a guide pad while the drill remains in the bushing, keeping the tool on location. Once the drill is in the cut, these guide pads continue to force the tool to cut a straight path for the remainder of operation.
In a case study involving the machining of 36.0" DOC holes in Ti6AL4V (Titanium Grade 5), with the part being drilled from both sides and the hole meeting in the middle, the special-design Star SU Single Flute Double Contour Gundrill achieved an average mismatch at the intersection of only .005" and average drift/inch of .00003", as compared to .036" mismatch and .0020" drift achieved by a standard single flute gundrill, according to Star SU. In addition to titanium, these drills are also successful in machining cast iron, aluminum, stainless steel, Inconel and 4140/4150V steels.
This special-design contour technology is also available in the following Star SU product lines:
- Single flute high performance gundrills
- Solid carbide single flute gundrills
- Two flute two hole milled style gundrills.
For more information contact:
Star SU, LLC Sales & Service
5200 Prairie Stone Parkway, Suite 100
Hoffman Estates, IL 60192
847-649-1450
sales@star-su.com
www.star-su.com
