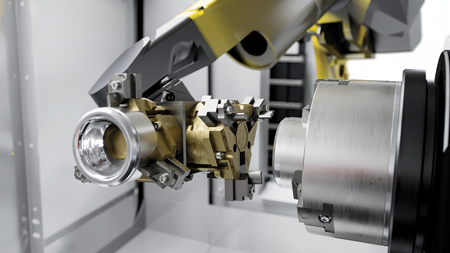

With the introduction of the new STUDER roboLoad system, UNITED GRINDING offers manufacturers seamless part-loading automation for CNC radius internal grinding machines, such as the company's STUDER S121, S131 and S141.
"Until now, loader integration was intrinsically difficult on these types of machines because of the height of their workheads and associated geometric restrictions," said a company spokesperson. "The new STUDER loader not only meets the geometrical requirements, but also has a comparatively small footprint and an exceptional price-performance ratio. For even more ease of use, it operates without any programming knowledge, allowing for greater production flexibility and a high degree of operating comfort."
On the STUDER S121, S131 and S141 machines-often used to produce dies for the packaging industry-automatic B axes swivel in a range from -60° to +91°. That, according to Daniel Schafroth, Systems Division Manager at STUDER, is why any automation must be able to exit the machine and give the B-axis the freedom to swivel. The STUDER roboLoad offers that capability.
As an external loader, STUDER roboLoad measures only 59.06" wide: half the width of the machine itself. This saves valuable shop floor space, and yet the system offers plenty of room for workpieces manually loaded on six trays-each measuring 42.52" x 12.6"-within a comparatively small work area.
"We are not talking about large-scale production, but instead unmanned production during the night shift, for example, or making optimum use of breaks in other production processes," explained Schafroth. Operators can bring up any grinding program for the workpieces, and the STUDER roboLoad processes them and places each workpiece back in the same place after machining.
For simplicity of operation, the STUDER roboLoad incorporates a set-up wizard developed by automation specialists from WENGER of Winterthur, Switzerland. It requires no programming knowledge on the part of the setter or machine operator. "The easy-to-follow steps are graphically presented on a large 19 in. intuitive display," explained Managing Director Michael Wenger. "The goal was that an operator should be able to set up a new workpiece, including the changeover of the gripper jaws, within 15 minutes. We succeeded in this."
For more information contact:
UNITED GRINDING North America Inc.
2100 UNITED GRINDING Blvd.
Miamisburg, OH 45342
937-859-1975
info@grinding.com
www.grinding.com
