New CNC Bed-Type Mill with Rigid Head

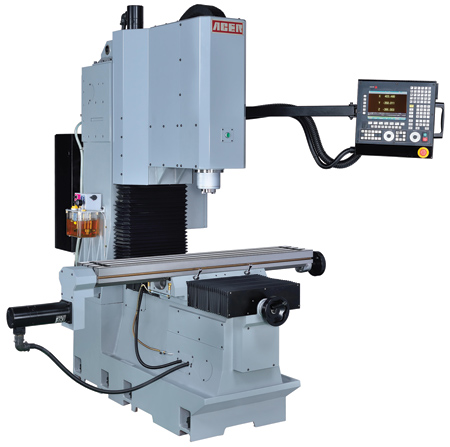

The ACER ATM-1054+ 3- or 4-axis CNC bed-type mill with rigid head is the latest addition to the inverter-drive series.

The ATM-1054+ features 7.5 HP spindle inverter motors and 0-6,000 RPM spindle speeds. Maximum rapid feeds in XYZ are 31.5"/20"/20.87" (200 IPM). The control is a Fagor 8055i/FL-MC. The mill is available with or without an ATC at eight tools.

Features include:

  • AC servo motors come standard with machine
  • Rigid tapping capability
  • 4th axis ready
  • Ball screw bearing pairs installed at the end of each axis
  • Retractable umbrella ATC at 8 tools
  • Throat distance at 23.62" (600 mm) and under spindle nose at 25.39" (645 mm)
  • Quill diameter: 4.72" (120 mm)
  • Spindle taper: CAT #40 (Option: BT #40)
  • Gross weight: 5,254 lbs.

Additional standard features include a coolant system, table guard, chip pan and column guards.

For more information contact:

Southwest

ACER/Springwood Industrial, Inc.

1062 N. Kraemer Place

Anaheim, CA 92806

714-632-9701

info@aceronline.net

www.aceronline.net

Southeast

Acer/KLIM Industrial, Inc.

244 N. Randolphville Rd.

Piscataway, NJ 08854

732-752-9100

klim@acergroup.com

www.aceronline.net

Northeast

Acer/KLIM Industrial, Inc.

244 N. Randolphville Rd.

Piscataway, NJ 08854

732-752-9100

klim@acergroup.com

www.aceronline.net

Midwest

ACER/Springwood Industrial, Inc.

1062 N. Kraemer Place

Anaheim, CA 92806

714-632-9701

info@aceronline.net

www.aceronline.net

Acer/KLIM Industrial, Inc.

244 N. Randolphville Rd.

Piscataway, NJ 08854

732-752-9100

klim@acergroup.com

www.aceronline.net

West

ACER/Springwood Industrial, Inc.

1062 N. Kraemer Place

Anaheim, CA 92806

714-632-9701

info@aceronline.net

www.aceronline.net
