3-Axis CNC EDM Drilling Machine
July 1, 2016

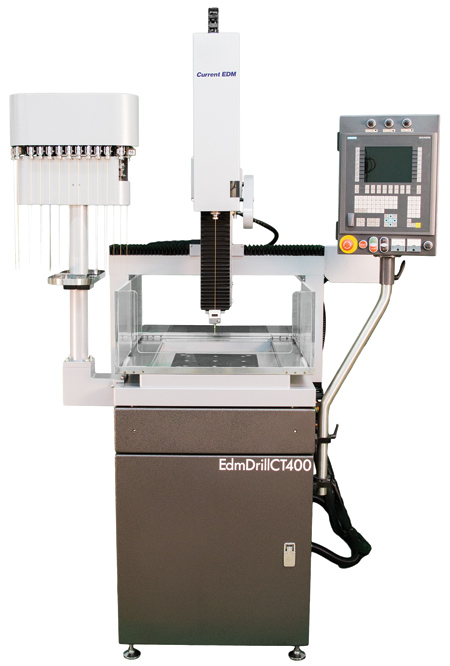

Current EDM offers the CURRENT EDM Model CT400 EDM DRILLING Machine. This is a true production EDM drill for use in the general metalworking, medical, aero engine and power-gen industries. The CT400 features a choice of either the Siemens M control or the Siemens 840D control. Depending on the user's application, a 25 peak-amp (0.0012" ~0.070" dia. electrode range) or a 57 peak-amp (0.004" ~0.256" dia. electrode range) power supply is available. XYZ travels are 16" x 12" x 16" with a table capacity of 1,000 lbs.
The base Siemens M control can handle tough EDM drilling applications. Features include programmable power settings, USB port, referencing cycles, electrode dressing and Ethernet connectivity to simplify complex applications. Multi-level program lock-out security protects programs from unwanted changes. Add an optional programmable servo to ensure accurate and consistent hole drilling. Precision ball screws and high-torque Siemens motors provide precise positioning. The CT400 can be configured with optional AB tables for 5-axis capability; add a 24-station tool changer to automate the job.
For more information contact:
Current EDM, Inc.
2155 Niagara Ln. North
Plymouth, MN 55447
763-476-2290
info@currentedm.com
www.currentedm.com
