Heavy-Duty HMC for Aerospace Engine and Structural Components
June 1, 2015

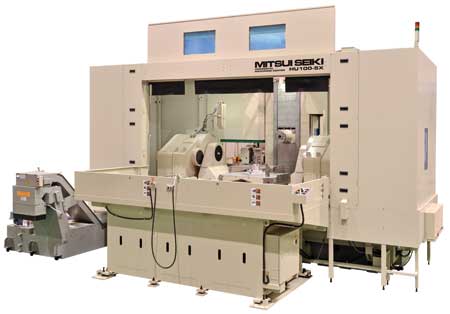

Mitsui Seiki's HU100-5X is particularly well suited to high heat engine components and titanium structural components for aerospace applications. Other industries, such as power generation, mold and die and ultra precision components, have fundamental common requirements: machine rigidity, stiffness and high accuracy.
Suitable for larger aerospace parts, the HU100-5X features an XYZ work zone capacity of 1,500 mm x 1,200 mm x 1,200 mm. The machine accommodates a weight up to 4,400 lbs. (2,000 kg). Other features include maximum spindle torque of 2,000 ft-lbs., HSK 125A tool taper, dual pallet changer, an automatic workpiece/fixture measuring and compensation system, non-contact laser tool setting device, 3D tool compensation, dynamic feature offset and FANUC 30iM control.
"High accuracy and rigidity come from the builder's attention to the basic structure, 3D FEM design, hand scraping of all castings for geometry and frequency tuning, plus hardened and ground steel box ways," said a company spokesperson. "All critical components for the machines are designed, manufactured and quality controlled in-house."
For more information contact:
Scott Walker, President
Mitsui Seiki USA, Inc.
563 Commerce Street
Franklin Lakes, NJ 07417
201-337-1300
www.mitsuiseiki.com
