New Alignment Kit for 3-Axis CNC Gantries

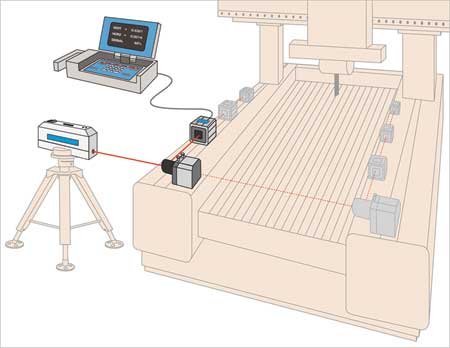

Pinpoint Laser Systems has introduced the Pinpoint Gantry Kit for geometric alignment of 3-axis CNC gantry machines. The kit measures straightness, perpendicularity, level and other parameters to an accuracy of 0.001" over longitudinal travel of 150'. Operators can use the measurement values directly to make machine adjustments, or upload data to a PC for display and further computation and compensation. "The kit's straight and weightless laser beam replaces traditional references of piano wire, heavy steel straight edges and granite," said a company spokesperson.

For large format CNC gantries, geometric alignment is critical for meeting precision tolerances and minimizing maintenance expenses. "With the Pinpoint Gantry Alignment Kit, operators can ensure rail straightness and parallelism, cross bridge perpendicularity, Z-axis straightness and bed flatness," said the spokesperson. "Compared to conventional methods, Pinpoint is faster, easier and more consistently accurate - operators can check an entire machine in hours rather than days. OEMs can use the kit for machine fabrication and assembly, installers for set-up and certification, and end-users and alignment bureaus for maintenance."

The housings for the laser and receiver are precision engineered and machined of solid aluminum that is anodized for wear resistance. The entire system is battery operated, and a USB interface allows easy connection to a PC. The kit includes Pinpoint Capture software, a tool for data display, graphing and storage. All components fit securely inside a carrying case for safe transportation to the factory floor or jobsite.

For more information contact:

Pinpoint Laser Systems

56 Pulaski Street

Peabody, MA

800-757-5383 / 978-532-8001

www.pinpointlaser.com
