Process Extra-Large Parts in Single Set-ups

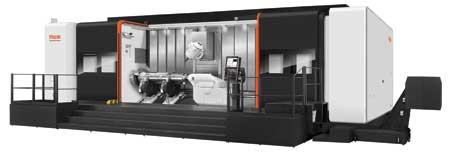

Designed for industries that include aerospace, construction machinery and energy, the new Mazak INTEGREX e-800H II is the company's biggest multitasking machine for extra-large part production. According to the company, it productively performs all cutting operations - turning, milling, boring, drilling and more - in a single machine set-up (Done-In-One processing).

The INTEGREX e-800H II's turning spindle has a top speed of 700 RPM, maximum motor output of 60 HP (45 kW) and torque of 10,104 ft-lbs. (13,700 Nm) for effective heavy-duty machining. A drop-worm system with the same positioning accuracy as a machining center rotary table drives the C-axis that indexes in 0.0001° increments.

The machine also features a high-performance 50-taper, 10,000 RPM milling spindle with a maximum motor output of 50 HP (37 kW) and B-axis rotation of 240°. A heavy-duty roller gear cam makes up the framework of the machine's B-axis that provides milling spindle indexing or contouring and maximum tool point agility.

"Overall, these turning and milling spindle specifications give the machine the necessary power, torque and accuracy to achieve enhanced metal removal capabilities when creating challenging parts such as those used in aircraft landing gear and ship crankshafts," said a company spokesperson.

A standard 40-tool magazine for storage and retrieval of turning, milling, drilling and tapping tools further supports the machine's multitasking processes, while its fast automatic tool changer helps reduce non-cut times. Optional 80- and 120-tool magazines are available for manufacturers with higher machining requirements.

Other available options that further increase the machine's versatility and productivity include a long boring bar system with a maximum tool length of 60" (1,525 mm), a long drill holder that drills up to 31" (800 mm) and a long milling tool that can reach a maximum length of 49" (1,244 mm) and perform right-angled milling inside a bore.

The INTEGREX e-800H II has a swing capacity of up to 51" (1,300 mm), Y-axis stroke of 31.5" (800 mm), bed lengths ranging from 160" (4,064 mm) to 320" (8,128 mm) and a workpiece load capacity of up to 15 tons, including workholding weight. Steady rests are available to support workpiece diameters up to 31.5" (800 mm).

Mazak's exclusive MX Hybrid Roller Guide System on the INTEGREX e-800H II is designed to provide durability and reliability for long-term accuracy. According to the company, the way system increases vibration dampening, extends tool life, handles higher load capacities and eliminates tramp oil in the coolant by utilizing a greener grease-based lubrication system.

Additionally, the INTEGREX e-800H II features Mazak's exclusive SMOOTH TECHNOLOGY. "This technology provides substantial productivity improvements through its ease of use, adaptability and far-reaching functionality in terms of enhanced machine performance," said the spokesperson. "Easier programming, extensive simulation capabilities, optimization of tool paths, economized machine movement and overall faster cycle times are just a few of SMOOTH TECHNOLOGY's numerous benefits."
