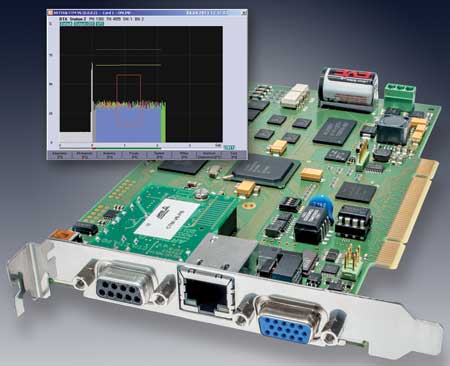

Marposs has introduced its new generation Artis CTM V6 tool, machine and process monitoring system. The CTM system is designed to safeguard and optimize complex production processes due to aligned in-process monitoring. "The flexible interface concept enables problem-free integration within many environments, from entry solutions with no fieldbus connections, to branched Ethernet architectures such as PROFINET, Ethernet/IP and Modbus," said a company spokesperson.
Using the CTM system, evaluation and control are carried out with process-dependent strategies. "Instead of searching for the smallest common denominator, CTM offers a range of strategies to optimally monitor the process," said the spokesperson. "Each individual parameter can be very finely adjusted and precisely adapted to the process. Process monitoring operates precisely and reliably from the very first cut."
In the basic installation, the CTM system is interfaced with the machine control and accepts inputs from various measuring transducers. Data capturing is accomplished using a sensorless digital torque adaptor (DTA), wherein a selection of drive data is collected by the control for the evaluation of the torque of the spindle and the feed axis. Additional or alternative sensors are available for measuring strain and force, true power, torque, vibration and acceleration, acoustic emission and standard power or voltage signals.
Optionally, the CTM V6 system can provide adaptive control for adjusting the feed speed to compensate for material deviations. This function protects both machine and tool under high load by reducing the feed force.
For gear hobbing applications, the CTM V6 system is designed to improve quality and extend the productive life of hobbing tools by utilizing wear-based method safeguards as opposed to traditional replacement at fixed regular interval methods.
Monitoring of coolant flow using the CTM V6 system is especially useful for processes with small tools, such as deep-hole drilling.
"Tool related, automatic and process accompanying documentation provided by the CTM V6 system is based on precise data," said the spokesperson. "Visualization software is a fundamental part of the CTM V6 tool and process monitoring system, enabling thorough evaluation of processes in a user-friendly manner.
"Main benefits of the new CTM V6 system include comprehensive protection of tools and machines; process optimization; lower of unit costs by reducing the number of rejects; perfect adjustment even in the case of complex processes; and seamlessly documented component quality."
For more information contact:
Marposs Corporation
3300 Cross Creek Parkway
Auburn Hills, MI 48326
248-370-0404
marposs@us.marposs.com
www.marposs.com
