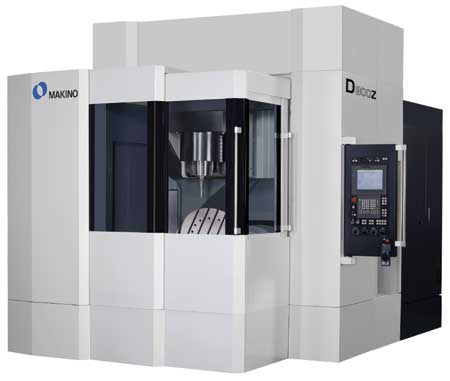

Makino's D800Z 5-axis vertical machining center (VMC) is designed for high-performance job shops, precision parts machining, die/mold and aerospace applications. The D800Z offers easy access to the spindle and table, a rigid structure for responsive cutting, enhanced surface finishes and optional automation devices. According to the company, workpieces of up to 1,000 mm in diameter and 1,200 kg in weight can be machined in five axes with efficiency and fewer operations.
"Large part 5-axis machining presents numerous challenges due to the size, weight and range of features found on large components," said Bill Howard, VMC Product Line Manager at Makino. "The D800Z 5-axis machine provides new levels of sustained dynamic accuracy achieved through technologies that are very productive, yet minimize thermal influences and maximize volumetric accuracy."
The 5-axis capability of the D800Z can be utilized in five face milling mode to minimize set-up, maximizing access to complex, multisided parts and reducing cycle times, or to address the demanding angular, blending, matching, fine surface finishes and 3D accuracy requirements of die and mold components.
"The integral, direct drive motor design of the fourth and fifth axes and rigid supporting machine structure deliver productive speed and smooth motion and ensure outstanding accuracy - even with large workpieces and payloads up to 1,200 kg," said a company spokesperson. "In addition, core-cooled ballscrews, temperature control of the direct-drive motors and massive machine structure provide thermal stability that guarantees sustained accuracy over time.

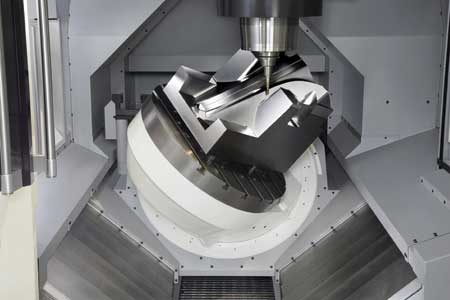

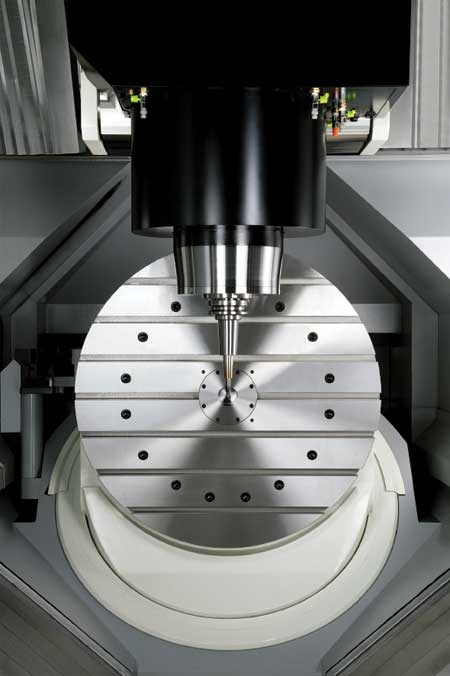

"The uniquely designed Z shape of the tilt trunnion table ensures that the center of gravity of the table and work are always captured within the center of rotation of the B and C axes. Large diameter bearings minimize table deflection and provide enhanced stiffness and rigidity, regardless of the angular and rotary position of the work. The direct drive motor design provides the speed for productivity and precision for tight tolerance work."
The D800Z can be configured with two different spindle combinations: D800Z (#40) and D800Z (#50). The D800Z (#40) offers a standard Cat #40 (or optional HSK-A63) 14,000 RPM spindle. As an option, the D800Z (#40) can also be configured with a 20,000 RPM HSK-A63 spindle. The D800Z (#40) incorporates a 40-tool magazine. The D800Z (#50) offers a standard Cat #50 (or optional HSK-A100) 12,000 RPM spindle. As an option, the D800Z (#50) can also be configured with an 18,000 RPM HSK-A100 spindle. The D800Z (#50) incorporates a 48-tool magazine. The range of spindle offerings provides the ability to customize the machine to suit a wide variety of machining applications. Feedrates are 36,000 mm/min. on the X, Y and Z axes, and 18,000 deg/min. (50 RPM) on the B and X axes.
"Also featured on the D800Z is Makino's proprietary, next-generation Super Geometric Intelligence (SGI.4) software developed specifically for high feedrate, tight tolerance machining of complex 3D, contoured shapes involving continuous tiny blocks of NC data, which ensures production rates faster than standard CNC systems while maintaining high accuracy," said the spokesperson. "SGI.4 helps provide the lowest cycle times and costs achievable by reducing machining cycle times on dies, complex cavities and cores, and aerospace parts by as much as 40%, when compared to most other control technologies."
The D800Z is equipped with a number of 5-axis features, including Tool Center Point (TCP) control, which permits programming based on the tool tip so that tool compensation features can be applied. Further TCP developments improve the cutter path to achieve greater surface quality. Dedicated user-friendly screens are developed to simplify the overall application of 5-axis machining. Easy-to-apply functions are included to prevent interference between the spindle and trunnion during automatic operation, eliminating collisions.

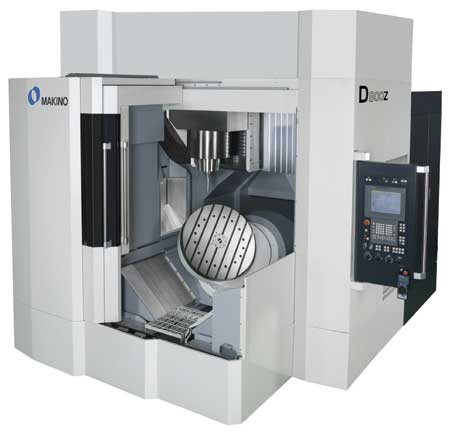

The D800Z comes with a two-sided front door design for easy access to the spindle and table for set-up purposes, and a large window for enhanced visibility. The machine's compact size of 3,200 mm x 5,070 mm x 3,600 mm requires less floor space, and its intelligent design facilitates maintenance activities.
The D800Z has also been designed to lower a shop's operating costs through reduced energy consumption. To save energy costs, the D800Z features an eco mode, which turns off peripheral devices when they are not needed. The energy-saving coolant system comes with an inverter-driven coolant pump that supplies precisely the required flow rate and timing for each function. The hydraulic unit, with its accumulator, ensures zero power consumption when the pump is idle.
