Power Mill Range
May 1, 2014

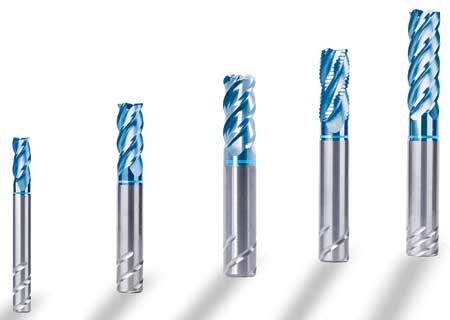

The Haimer Power Mill Portfolio, with cutting diameters available from 2 to 20 mm, is available with three, four and five cutting edges having multiple lengths of cut. Different cutting edge solutions will be offered, as well as a roughing geometry.
Haimer Power Mill solid carbide endmills are made from high end fine grain carbide and are equipped with the Haimer pull out protection system, Safe-Lock. The endmill geometries are based on an unequal flute and helix design for chatter free high end machining. All tools are coated with latest PVD technology and have a smooth surface for enhanced chip evacuation.
The Haimer Power Mill range, with cutting diameters available from 2 to 20 mm, is available with three, four and five cutting edges having multiple lengths of cut. To offer maximum flexibility, different cutting edge solutions (sharp, chamfer and radius) will be offered. Also a roughing geometry with a cord profile will be part of the portfolio.
All end mills are fine balanced and have a run-out of 5 um. All shanks are based on the h5 tolerance.
"As the inventor of Safe-Lock, Haimer steps up and offers this shank solution as a standard for all Haimer Power Mill tools starting from shank diameter 6 mm and intentionally gives up on plain round and Weldon shanks," said Andreas Haimer.
"Due to the inherently balanced design, the Safe-Lock shanks can be clamped in standard shrink fit and collet chucks without any problems," said a company spokesperson. "Safe-Lock not only supports roughing applications, but becomes a new universal solution that continues to find more and more use during HSC applications with high helix endmills."
For more information contact:
Haimer USA
134 E. Hill Street
Villa Park, IL 60181
630-833-1500
haimer@haimer-usa.com
www.haimer-usa.com
