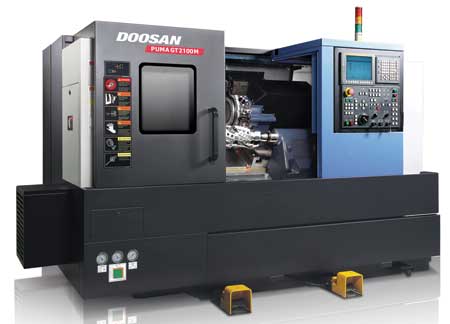

The all-new Doosan Puma GT2100MB CNC turning center. Swing over bed, 23.6". Swing over saddle, 15.4". Max. turning diameter, 15.4", max. turning length, 22.1", chuck size, 10" and bar working diameter, 3.2".
Doosan's all-new compact Puma GT2100 series 8" and 10" turning centers incorporate the key advantages of the Puma 240 in a more compact and cost competitive package with improved performance, accuracy and reliability, according to the company.
Features include:
- Swing over bed, 23.6"
- Swing over saddle, 15.4"
- Maximum turning diameter, 15.4"
- Maximum bar working diameter 3.2" (Puma GT2100(M)B)
- Maximum turning length 22.1".
"The Puma GT's 30° single-piece slant bed design reduces the center of gravity of both spindle and cross slide by 12%," said a company spokesperson. "The natural frequency - the amount of structural vibration - is a critical factor that affects the machine's contouring performance and surface finishes. The NF of the Puma GT2100 bed is 42% higher, delivering greater dynamic stability in high-speed operation. Cast design optimized with 3D computerized analysis delivers stable cutting performance with minimized cutting vibration and extended tool service life. Wide ribs and a box-type slideway further reinforce bed rigidity.
"An optimized spindle overhang design has minimized the rotational inertia load, enhanced rigidity and shortened accel/decel time." Spindle motor, 25 HP. Maximum spindle speed, 4,500 RPM. Rapid travels: 945 IPM (X-axis) and 1,181 IPM (Z-axis).
"A larger Z-axis servomotor delivers 60% more feed thrust, resulting in larger drilling capability," said the spokesperson. "The spindle design features three angular ball bearings in the front and cylindrical roller bearings in the rear, which minimizes thermal growth and increases precision.
"The spindle is also shorter for reduced acceleration/deceleration time. The spindle drive belt length has also been reduced, contributing to less belt stretch, higher milling accuracy and less belt vibration.
"Efforts have also been made to reduce the number of parts, making the design simpler and more reliable. The turrets are a good example. The number of parts has been reduced up to 53%. Pulleys, belt and intermediate gears have all been eliminated on the Puma GT2100 and have been replaced with a larger servomotor." Number of tool stations, 12; O.D. tool size, 1.0 x 1.0"; maximum boring bar size, 1.6"; turret indexing time, 0.3 sec.
"The BMT55P turret (Puma GT 2100M) tooling is strongly fixed to the turret with four bolts and keys to provide powerful machining performance with high efficiency, high rigidity and a high precision internal drive system," said the spokesperson. "Stable performance is guaranteed even after extensive milling work." Rotary tool speed, 5,000 RPM with a 7.5 HP rotary tool motor.
The new milling turret design has a bevel drive gear and air /oil cooling. "The design provides low heat generation, minimizing thermal growth while providing silent, vibration free performance," said the spokesperson. "Increasing the hose size and eliminating intermediate manifolds improve coolant flow rate. Higher flow rate improves cutting performance."
The operating console features a Doosan-FANUC i control with a large 10.4" color TFT LCD monitor with PCMCIA card, USB port, embedded Ethernet connectivity and a swing-type panel (88° swing).
Doosan EZ Guide i is included as a standard feature, offering shop floor conversational type programming. Roughing, finishing, castings, grooving, threading, peck drilling and more are all accomplished through EZ Guide's menu driven functions. Programs are easily generated using cycles instead of long hand code.
Further, the new Puma GT2100 is easier to load. Distance from front cover to spindle center is reduced from 17.2" to 15.3". And finally, for a machine with similar specifications, the new Puma GT2100 series are 14% to 25% more compact than the previous models. Cost of floor space does impact the hourly operating cost and, in many cases, shop floor real estate has become an important issue.
The Puma GT2100 guarding has been designed to provide easy access for adjustment, maintenance and service. The chip conveyor design bolts directly to the machine allowing the chip pan and coolant tank to slide out independently. This design eliminates coolant leakage and makes it easy to access and clean the tank. The tail stock guide ways on the new Puma GT2100 series are covered and fully protected from chips. This eliminates the ongoing cleanup time required on previous models.
Energy savings is achieved by using a 23% more efficient hydraulic unit. An LED work light is now being used which lasts 10 times longer than the previous halogen type and generates little heat. This helps to keep the work area cooler and thermally stable. LED lights also consume much less energy. Auto power off functions further reduce power consumption and heat.
