550 °F Floor-Level Cabinet Oven from Grieve
May 1, 2014

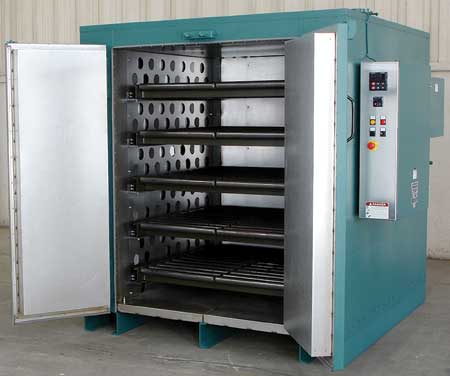

No. 1030 is a 550 °F floor-level electric cabinet oven from Grieve, currently used for heating large gears at a customer's facility. Workspace dimensions of this oven measure 48" W x 48" D x 60" H. Forty kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 2,000 CFM, 2 HP recirculating blower provides horizontal airflow across the workload.
This Grieve cabinet oven features 6" insulated walls, aluminized steel exterior and interior, plus five levels of dual-lane roller conveyor rated at 300 lbs. per level.
Controls onboard No. 1030 include a digital indicating temperature controller, manual reset excess temperature controller with separate control contactors and a recirculating blower airflow safety switch.
For more information contact:
Frank Calabrese, VP
The Grieve Corporation
500 Hart Road
Round Lake, IL 60073-2898
847-546-8225
sales@grievecorp.com
www.grievecorp.com
< back
