Sharp Industries Expands Linear Guide Machine Series
May 1, 2014

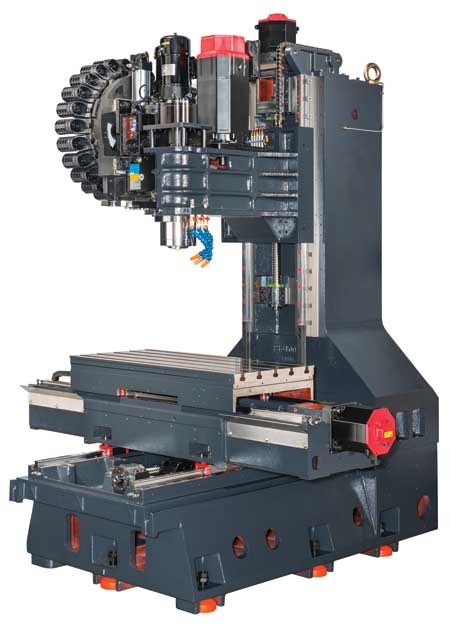

SVL-3320
Sharp Industries is offering a new model of linear guide vertical machining center with 40" x 20" x 22" travel. It will have rapid traverse of up to 1,417 inches per minute, which provides users with quick positioning of the work table. The standard spindle speed is 12,000 RPM with options of 15,000 RPM speed. High-speed spindles offer a better finish on work pieces and a smooth machining process.
Thermal stability of the machine is maintained by a spindle oil chiller and electric cabinet heat exchanger. The positioning accuracy is held within 0.00016" and repeatability is maintained within 0.00012", according to the company. The side mount 24 tool changer delivers fast tool change at 1.3 seconds (tool to tool). The model uses a Fanuc Oi-MD control system with Fanuc drives and motors.
Sharp offers standard features to enhance the productivity of this machine, they include: a removable MPG handwheel, USB port and embedded Ethernet on the control panel, spindle air blast, air gun and coolant gun mounted at front of machine, oil skimmer, chip conveyor, coolant through spindle prepped and ATC air accumulator. The machine is also available in a smaller size model with 33" x 20" x 22" travel.
For more information contact:
Sharp Industries, Inc.
3501 Challenger Street
Torrance, CA 90503
310-370-5990
www.sharp-industries.com
