1,000 Degree F High-Temperature Bench Oven
November 1, 2013

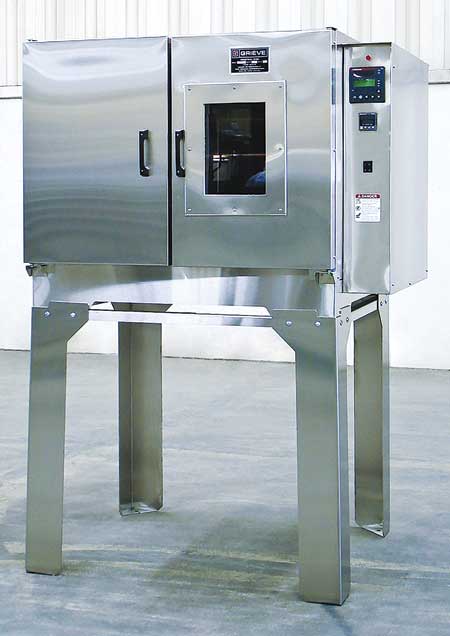

No. 1017 is a 1,000° F high-temperature bench oven from Grieve, currently used for various heat processings at the customer's facility. Workspace dimensions of this oven measure 22" W x 22" D x 13" H. 3 kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a recirculating blower provides airflow to the workload.
This Grieve bench oven features 5" insulated walls, stainless steel exterior with #4 brushed finish, Type 304, 3B finish stainless steel interior, integral oven stand and an 8" x 10" double-pane Pyrex/Vycor viewing window.
Controls onboard No. 1017 include a digital programming temperature controller and manual reset excess temperature controller with separate control contactors.
For more information contact:
Frank Calabrese
National Sales Manager
The Grieve Corporation
500 Hart Road
Round Lake, IL 60073-2898
847-546-8225
sales@grievecorp.com
www.grievecorp.com
