Diamond / CBN Wheel Truing and Dressing Machine
November 1, 2013

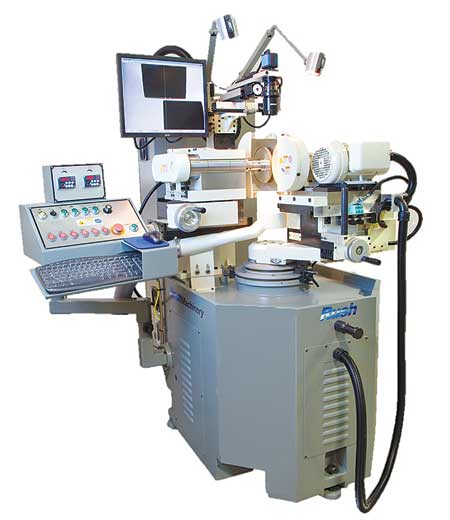

The Rush Model FC-250W is designed for truing and dressing of flats, angles and radii on diamond and CBN single wheels and multiple wheel packs. It may be utilized by tool manufacturers, grinding wheel manufacturers and production grinding facilities.
"The Model FC-250W allows for increased efficiency and accuracy by profiling, modifying profiles and truing wheels properly - offline of the production grinding machinery," said a company spokesperson. "The machine is simple to operate, quick, accurate and cost effective."
Standard features include: a computer-driven vision system with a software program specifically designed for the FC-250W and its various applications; an automatic power zoom; and a 2-axis DRO for measurement. Fully enclosed slides and ways are designed for minimal wear for long machine life. The heavy-duty, one-piece cast iron base provides extra rigidity and minimizes vibration.
Options include an automatic zoom positioning (AZP) computer controlled 2-axis slide for camera positioning, an automated version with PLC and servo control for truing wheel infeed and pivot axes, a dust collection system and quick-change spindle adapters for most CNC and manual grinders.
For more information contact:
Rob Robbins, Sales Manager
Rush Machinery, Inc.
4761 Route 364
Rushville, NY 14544
800-929-3070 / 585-554-3070
rob@rushmachinery.com
mail@rushmachinery.com
www.rushmachinery.com
