Multi-Position, Direct Drive Belt Grinder

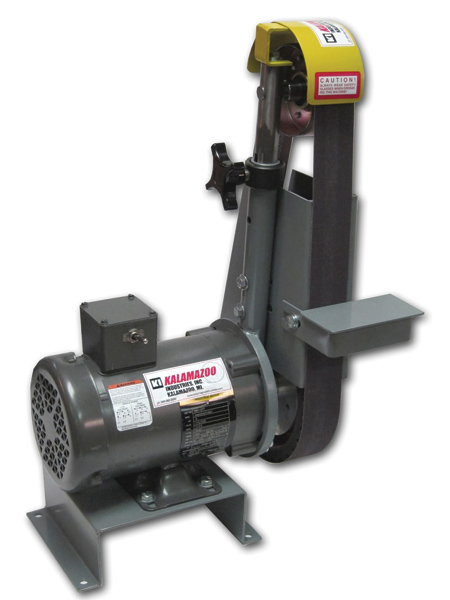

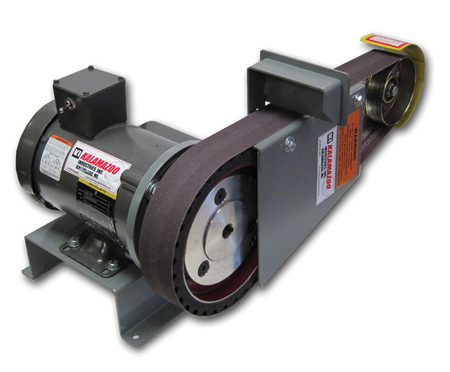

The model BG248 belt grinder from Kalamazoo Industries is a 2" x 48" belt grinder that can be positioned at any point from vertical to horizontal. The high 7200 SFPM belt speed enables fast metal removal with little heat buildup. The BG248 was originally designed to meet the sanding and grinding needs of a customer's application, the BG248 is now standard and included in the company's product line.

The belt grinder features a 2" W x 8" H work space that allows for full work movement from left to right, and a removable platen and work table that is removable so the operator can slack belt grind and platen grind. This unit, like all of the grinders, can also grind on the contact wheel as well.

This unit has spring loaded belt tension, quick belt change, an 8" x 2" serrated 70 duro contact wheel and a 1/2 HP 1PH direct drive motor available in 110V or 220V. The grinder is also available with or without a stand. The part number for the unit that comes with a stand is BG248S.

The Kalamazoo Industries BG248 2" x 48" is suitable for applications such as the following: deburring, general parts clean up, polishing, descaling, beveling edges and round over ends.

The model BG248 belt grinder from Kalamazoo Industries will fit in any size shop, large or small, and will accommodate any 2" x 48" belt to get the desired finish.

The belt grinders can grind both ferrous and non-ferrous metals.

All of Kalamazoo Industries equipment is designed, manufactured and assembled in the USA.

For more information contact:

Kalamazoo Industries, Inc.

6856 East K Ave.

Kalamazoo, MI 49048

800-592-2050 / 269-382-2050

info@kalamazooind.com

www.kalamazooind.com
