Bending Control for Smart Press Brakes

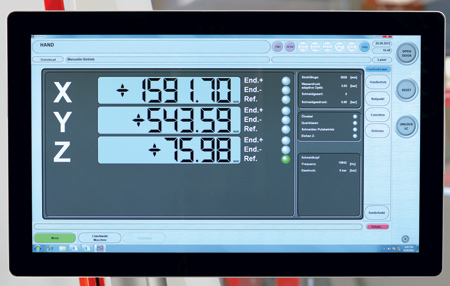

"Bystronic's CNC interface ByVision Bending sets a new standard for easy-to-use CNC operating platforms," said a company spokesperson. With a full 22" HD touchscreen, press brake users are able to quickly maneuver through screen selections for easy set-up and operation. The operator is seamlessly guided through the programming and manufacturing process. Bending sequences can be modified on-the-fly by the operator even if the program was developed off-line. The ByVision Bending user interface operates within the Windows platform for a high level of speed and network compatibility. Program data transmissions are transferred between the ByVision Bending interface and the CNC utilizing high speed network communications.

For complete process integration, the BySoft 7 programming module provides off-line programming software offers users advanced synchronization of press brake, laser and waterjet processes. Bybend, an integrated BySoft software module, provides off-line programming capabilities including, automatic bend deductions, bend reliefs, bending sequences and back gauge placements for press brake users. With a 3-D simulation feature, visualization of the bending sequences as well as automatic collision detection is performed before the part is sent to the operator for processing, reducing set-up time and the need for test bending.

Other benefits include:

  • Simple, user-friendly and fast control of Xpert, Xcite and Xact Smart press brakes
  • Flexible high-performance controller for high productivity
  • Tool mapping for easy tool set-up
  • Bending programs can be easily created and edited
  • Extensive material bending parameters library
  • Graphics based part library storage capabilities
  • Fast program transfer rates
  • With Condition Messenger it is possible to monitor different machine conditions for proactive maintenance scheduling
  • Can be switched to many languages.

For more information contact:

Bystronic Inc.

200 Airport Road

Elgin, IL 60123

847-214-0300 / 800-247-3332
