Shipping of VERICUT Version 8.1.2



CGTech is shipping version 8.1.2 of VERICUT CNC machine simulation and optimization software. "In addition to new features making it more powerful and easier to use, more than 150 customer-driven enhancements and software requests have been implemented in version 8.1.2.," said a company spokesperson.

"We have thousands of customers and their needs vary greatly," said CGTech VERICUT Product Manager Gene Granata. "VERICUT is designed to meet the needs of all types of shops - from the small job shop with simple parts, to the OEM and Tier 1 supplier that regularly pushes the limits of CNC technology. VERICUT is constantly refined to provide the flexibility and tools our customers need."

VERICUT Product/Function Overview:

VERICUT is CNC machine simulation, verification and optimization software that enables users to eliminate the process of manually proving out NC programs. It reduces scrap loss and rework. The program also optimizes NC programs in order to both save time and produce higher quality parts that are dimensionally more accurate, and have better surface finish. VERICUT simulates all types of CNC machine tools, including those from leading manufacturers such as DMG MORI, Mazak, Makino, Matsuura, Hermle, DIXI and Chiron. VERICUT runs standalone, and easily integrates with all leading CAM systems such as Catia, NX, Creo Parametric (Pro/E), MasterCAM, PowerMill, EdgeCAM, hyperMILL, ESPRIT and GibbsCAM.

Enhancements in Additive Manufacturing

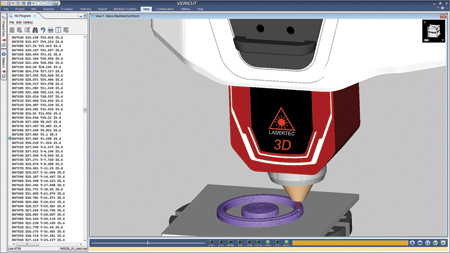

Additive material deposition can now be seen in VERICUT's Reviewer and NC Program Review. Additive errors and red error color are applied to deposited material when any of the additive functions being checked are not compliant, making it easy to spot potential problems in additive processes. A single click identifies the error source.

Enhancements in Optimization (Force and OptiPath)

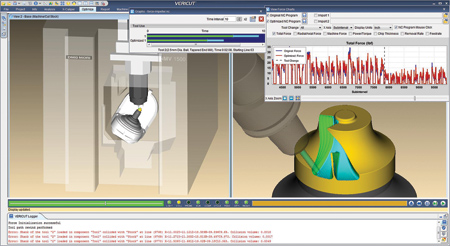

Users can optimize more complex NC programs, including looping, branching, IF/THEN and DO-WHILE code, while retaining all decision-making logic. Optimized NC programs and subroutines are ready to run with no edits by the user. Force Charts that graphically document the cutting process are enhanced with higher fidelity, so they can display even tiny material volumes and forces encountered.

Other features in 8.1.2 include:

  • Ability to stop at specific variables when they are set, or changed
  • Options for automatically performing AUTO-DIFF comparisons and output summary of AUTO-DIFF results to VERICUT reports
  • Support added for 3DEXPERIENCE 2017X, ESPRIT 2017, NX12
  • New calculation and reporting of Die Sinking electrode contact areas
  • VERICUT Help Library and supporting documents in HTML- this allows for easier navigation, faster searching and viewing higher quality images at a larger size
  • Enhanced VERICUT and Tool Manager support non-rotating 3-D model tools, such as used in ablation, painting, polishing and other specialized manufacturing processes
  • Enhanced integrations with Zoller and TDM tooling databases to provide access to complex 3-D tooling and ability to select and deselect specific tools for import.

For more information contact:

CGTech

9000 Research Drive

Irvine, CA 92618

949-753-1050

info@cgtech.com

www.cgtech.com
