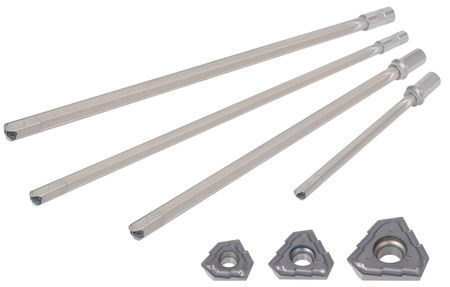

Indexable Gundrill Series Expands Small Diameter Range



Tungaloy Corporation further expands the DeepTriDrill with options down to a diameter range of 14-15.9 mm.

Deep hole drilling is a challenging operation and often creates a bottleneck in holemaking shops around the globe. The brazed gundrill or solid twist drill are staple tools in such operations. "A typical brazed gundrill has a single point, uncoated carbide tip," said a company spokesperson. "Due to these properties, high parameter drilling has not been possible. A solid twist drill is better for high feed drilling; however, curved holes and chip clogging are common setbacks with this type of tool. These traditional deep hole drills are expensive and require reconditioning and inventory management, which incurs significant extra cost for every deep drilling shop."

DeepTriDrill features one insert and two guide pads oriented in an optimized position on the drill head. This achieves tight tolerances with circularity and straightness as well as an enhanced surface finish, which a brazed gundrill could traditionally attain. The insert incorporates chipsplitters on the chipbreaker geometry, which break chips into smaller pieces to facilitate chip evacuation and reduce cutting force, enabling a higher feedrate. The coated insert and guide pads also allows DeepTriDrill to reach higher cutting speeds, which has been difficult with brazed gundrills.

DeepTriDrill is designed to not only increase machining performance but also facilitate inventory management due to its indexable system. "This small diameter range expansion complements DeepTriDrill, further enhancing its product positioning in the deep hole drilling market for high productivity and economy," the spokesperson added.

Features include:

  • BTA drilling technology for excellent surface finish and tight tolerances with circularity and straightness
  • Allows 1.5-5 times higher feedrates than that of a brazed gundrill
  • Economical three-cornered insert and double-sided guide pad
  • Chipsplitters on the chipbreaker geometry for optimized chip evacuation
  • Two drill body types available: MCTR for use in machining center or lathe; and TRLG for use in dedicated gundrill machine.

For more information contact:

Tungaloy America, Inc.

3726 N. Ventura Dr.

Arlington Heights, IL 60004

888-554-8394

info@tungaloyamerica.com

www.tungaloyamerica.com
