EDM Solutions for Various Requirements



Kent USA offers a wide selection of EDM solutions designed for a variety of needs and requirements. These include the WSi-200, KEB-600L CNC and the KEB-606N.

WSi-200

The WSi-200 is suited for schools, medical manufacturers and other applications due to being compact for its capabilities.

Features include:

  • 22" x 18.5" x 5.9" max. workpiece size
  • 661 lbs. max. workpiece weight
  • 8.27"/7.87" X/Y-axis travel
  • 6.1" Z-axis travel
  • 1.8"/1.8" U/V-axis travel
  • Machine structure designed and analyzed by CAE system for high structural rigidity
  • U-, V-, Z-axis strategically placed on upper column for enhanced spindle rigidity and precision
  • Magnet power clutch wire-receiving systems
  • ATW auto threading wire system
  • Permanent generator control system for wire tension stability
  • Accurate linear guide ways coupled with patented linear and block design.

KEB-600L CNC

The KEB-600L CNC is designed to be a competitively priced full CNC EDM. Features include:

  • 43.3" x 23.6" x 15.7" work tank
  • Max. output current of up to 90A
  • Over 2,200 lbs. of workload
  • Fully ribbed solid casting for maximum rigidity and stability
  • Built-in 3-axis DRO system integrates with machine control for positioning and auto Z-depth setting for easier set-up
  • Maximum 256 programmable steps for setting all machining parameters enable a complete start to finish auto-cycle for even the most complex jobs
  • MOSFET electric discharge circuit design for fast-burning, reduced electrode wear and more uniform surface finish
  • Precision linear ways with lubricated ball screws and AC servo motors on X-, Y- and Z-axis
  • Single or 3 axes lateral movement, round orbiting, square orbiting, etc.
  • Multicavity machining, Auto Home Function
  • With Side Loran function (X-, Y-axis), Angle Vector machining function and ARC clockwise and counterclockwise function
  • With C-axis option, the electrode can be turned to machine at an angle.

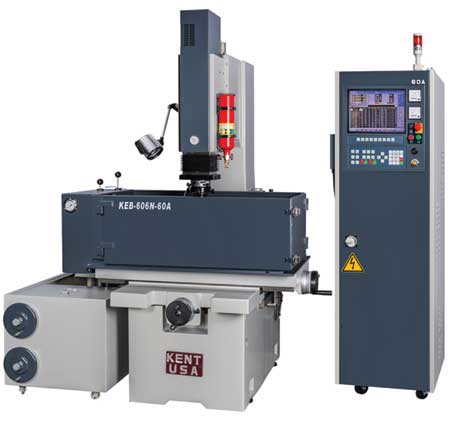

KEB-606N

The KEB-606N is suited for the mold, tool and die, medical industries and others that require cutting parts with hard-to-reach corners. According to the company, benefits include good value, user-friendly and built heavier for its class.

For more information contact:

Kent Industrial USA

1231 Edinger Ave.

Tustin, CA 92780

800-KENT-USA / 714-258-8526

sales@kentusa.com

www.kentusa.com
