Produce Small Complex Parts with 3+2 or Full 5-Axis Machining

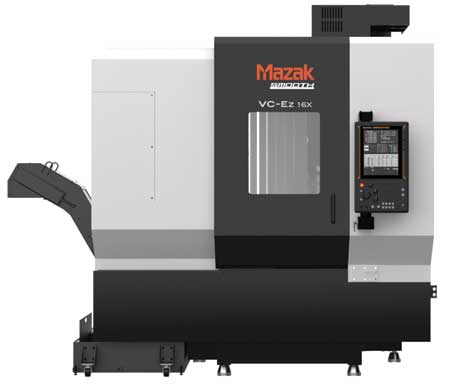

Mazak recently highlighted the newest additions to its compact, cost-effective Ez Series, the VC-Ez 16X Vertical Machining Center (VMC) and MAZATROL SmoothEz5 CNC. The new CNC enables the Kentucky-built VC-Ez 16X to process small complex parts via 3+2 or full 5-axis machining. The machine's rugged spindle, space-saving design and full range of options are engineered to meet many production needs.

The VC-Ez 16X provides axis travels of 27.75" in X and 16.14" in Y and Z (705 mm x 410 mm x 410 mm), with a rapid traverse rate of 1,654 IPM (42,011.6 mm/m) on all three axes. The machine accommodates workpieces up to 18.11" in diameter (460 mm) and 19.09" (485 mm) tall and parts weighing up to 507 lbs. (230 kg). A powerful 40-taper 12,000 RPM 25 HP (18.5 kW) spindle and 30-tool magazine are standard equipment.

The 5-axis rotary/tilt trunnion table with roller gear cam technology increases part-production capabilities with 360° of C-axis rotation and -40° to +110° of B-axis tilting capacity. To help ensure rigidity, speed and accuracy, the machine also uses dual lagged ballscrews on each linear axis and incorporates the Mazak MX Hybrid Roller Guide System.

Options include a versatile 15,000 RPM 29.5 HP (22 kW) spindle with 81.13 ft-lbs. (110 Nm) of torque and a 30- or 50-tool automatic changer, along with a magazine loading station, dual probe kit and Ez tool station. Various chip-management options-including 213 PSI through-spindle and Niagara coolant, filter tray, hinge chip conveyor and Mazak's SUPERFLOW 1,000-PSI (6.895 MPa) high-pressure coolant system-reduce maintenance downtime. For hands-free adjustment, operators can control an optional programmable coolant and/or air nozzle system via M-code or from a separate control panel. This provides 180°+ range of motion and reaches a specific angular location for every tool.

The MAZATROL SmoothEz5 CNC includes both MAZATROL conversational and G-code programming. The Mazak SMOOTH Machining Configurator (SMC) provides easy, flexible real-time machine/servo optimization for high-speed cutting applications. SMC combines with Intelligent Thermal Shield (ITS), which manages machine thermal stability to create more consistent parts over long periods of machining.

To maximize productivity, the VC-Ez 16X accepts a range of optional automation solutions, including full cooperative robot installations. Users can pair the VC-Ez 16X with the Mazak Automation Systems' Cobot Cell System CC-10 for unattended machining. The CC-10 system uses a FANUC CRX-10iA/L robot and provides 22.04 lbs. (10 kg) payload capacity. Three available grip systems and an area scanner with limited fixed fencing allow fully collaborative human-robot workflows.
