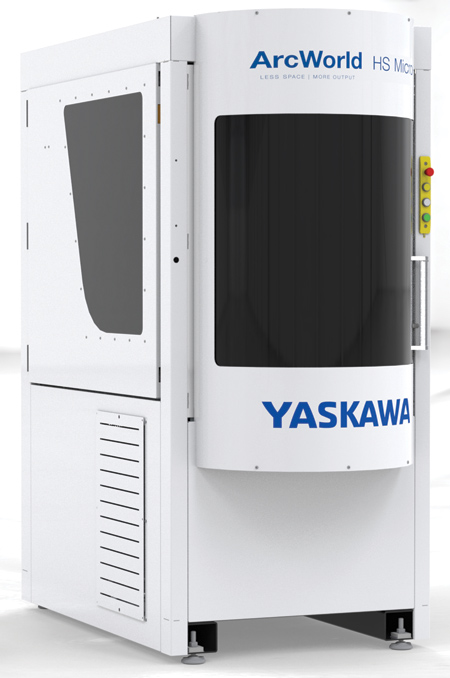

The pre-engineered ArcWorld HS robotic arc welding workcell offers a highly flexible, compact and cost-effective option for integrating robotics into current weld processes, the company reported. Suited for replacing or supplementing manual welding, such as pre-assembly before welding in larger robotic workcells, this solution is designed for optimizing small- to medium-size part production for medium volume fabrication.
Requiring only 1.4 sq. m (15 sq. ft.) of floorspace, the ArcWorld HS offers a hinged station (HS) design, allowing easy access for loading and unloading of parts. The workcell features a single fixture table with a 100 kg payload capacity and can process parts up to 550 mm x 500 mm x 1,050 mm in size. This cell is suited for R&D and educational use as well as smaller production runs.
The ArcWorld HS features a single high-speed, 6-axis AR900 arc welding robot with YRC1000 controller. An intuitive digital weld interface for all power source brands is included. An integrated weld package includes either a Miller Auto-Continuum 350 or Lincoln Electric Power Wave R450 power source, wire feeder, wire spool holder and a variety of available torch options. Processes from the power supply are accessed by Yaskawa's easy-to-use digital Universal Weldcom Interface (UWI), giving full control of welding parameters and settings from the robot programming pendant.
This solution offers overhead LED lighting and is enclosed with sheet metal and light-reducing polycarbonate for arc and spatter protection. A built-in extraction hood for fume filtration and four-button operator panel with E-stop also come as standard.
The ArcWorld HS is safeguarded and has a completed risk assessment compliant with ANSI/RIA R15.06-2012, and other relevant ISO and CSA standards. The robot controller's Functional Safety Unit (FSU) uses "stand still" monitoring for the robot and safety signals. All workcell doors are safety monitored.
The workstation, including the robot and safety fencing, come attached on a common base with integrated cable management for easy shipping and installation. Easy-open, safety-interlocked side panels allow for easier robot programming and equipment access.
Additional optional features are available, including a light beacon (three color), Digital TouchSense, gas flow rate meter (CWT) gas flow sensor (SMC) and a torch cleaning station (with or without wire cutter).
For more information contact:
Yaskawa America, Inc.
Motoman Robotics Division
100 Automation Way
Miamisburg, OH 45342
937-847-6200
www.motoman.com
SOUTHTEC Booth 1137
