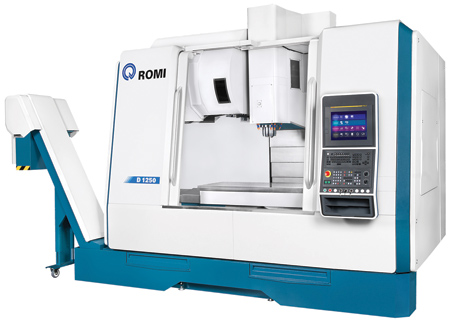

Vertical Machining Center Built for Rigidity



"Romi's New Generation D 1250 vertical machining center (VMC) is designed and built based on extensive customer research and has numerous features that enhance the machine's rigidity and precision," said a company spokesperson.

Weighing in at 15,400 lbs. (net weight), the D 1250 VMC is built on a foundation that enhances the production of quality parts. Like all Romi machine tools, it is a Romi-made monoblock cast iron bed that absorbs vibration and allows consistent production of highly precise parts. It has a 52" x 22" (1,320 mm x 560 mm) table and is equipped with a FANUC 0i-MF i-HMI CNC with a 15" touchscreen.

The D 1250 has a high-speed and high-quality package that allows better performance during machining. Linear roller guides facilitate feedrates up to 1,575 IPM (40 m/min), which allows precise and fast acceleration and positioning. The D 1250 is also equipped with a low maintenance, 40 BIG PLUS taper, direct drive motor that improves stiffness and accuracy and allows an increased depth of cut.

The machine has a fast, accurate vertical tool changer with 30-tool capacity. It features thermal compensation with sensors to help maintain stable, dimensional results in real time, even during long working periods when the machine temperature increases.

Romi Machine Tools, Ltd.

1845 Airport Exchange Blvd., #180

Erlanger, KY 41018

859-647-7566

sales@romiusa.com

www.romiusa.com
