Alignment Laser System for Machine Tool Builders



Renishaw offers a version of software for its XK10 alignment laser system that allows users to perform point-to-point parallelism measurements. "This functionality enables users to make precise adjustments to machine parallelism to a level that has previously been impossible using traditional measurement techniques," said a company spokesperson.

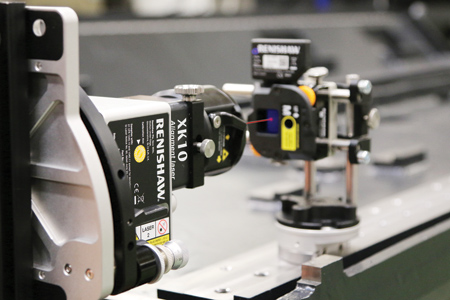

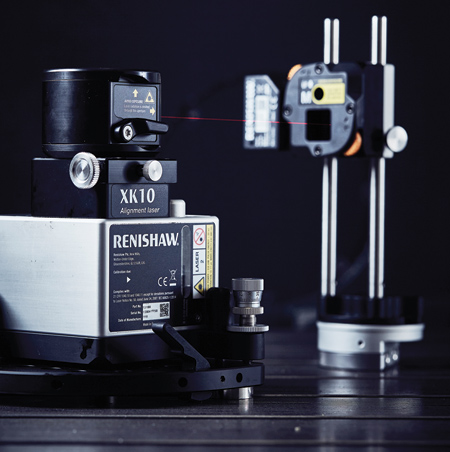

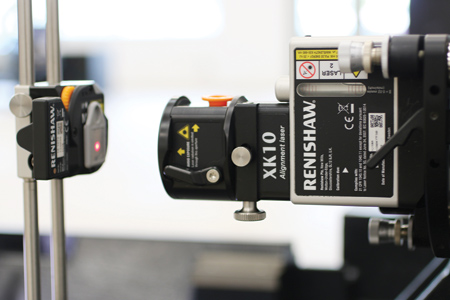

The XK10 alignment laser system is engineered to be a fast, precise and efficient measurement tool for straightness, squareness, rotational parallelism, rail parallelism flatness and level, as well as assessing spindle direction and coaxiality of rotary machines. It is a powerful tool for diagnosing the source of errors following a rebuild or as part of regular maintenance, Renishaw reported.

"The traditional method for parallelism measurement has previously been achieved by using a bridge plate and master rail, in combination with a dial gauge and level meter," said the spokesperson. "This method is time-consuming and is prone to error as the measurements are recorded manually. The XK10 uses laser measurements to capture two points on each rail, allowing the angle between the two rails to be determined and recorded digitally."

"This latest release of software enables the XK10 to take measurements at multiple points along each rail," explained Andy Deacon, Calibration Product Manager at Renishaw. "The benefit of an increased number of measurement points is that the straightness of each rail is also measured at the same time. Parallelism between the rails can then be determined by looking at the difference in straightness at each point, giving a more accurate picture than a measurement of the overall angle between rails.

"The XK10 is supplied with fixturing solutions to reduce set-up time and can be used with the optional parallelism optic designed specifically for this application," Deacon continued. "Making measurements where no rails are present is significantly improved using the included magnetic reference mount to easily slide the detector along the edge of a casting."

The spokesperson added, "Renishaw's calibration products, including the XL-80 laser interferometer, QC20 ballbar and XM-60 multi-axis calibrator, are essential tools to gain a greater understanding of a machine's capability. Regular maintenance checks of the condition of a machine, with powerful diagnosis of the source of any errors, minimizes reactive maintenance effort and focuses resources on valuable preventative work. CARTO software suite provides data capture, analysis and compensation applications, simplifying the process for monitoring and improving position performance."

For more information contact:

Renishaw, Inc.

1001 Wesemann Dr.

West Dundee, IL 60118

847-286-9953

usa@renishaw.com

www.renishaw.com/xk10
