Along with its powRgrip (PG) toolholding system, REGO-FIX will showcase several other tooling innovations during SOUTHTEC in booth 416. Those innovations include the company's expanding line of precision metrology products and recent additions to the PG family. Among the additions are the new PG48 along with MQL, CoolBore and grinding PG collets.
The company's PG 48 tool setting concept expands the PG line to 1.5" (38.1 mm) tools and includes a new tool setting unit that extends the capabilities of the company's clamping units.

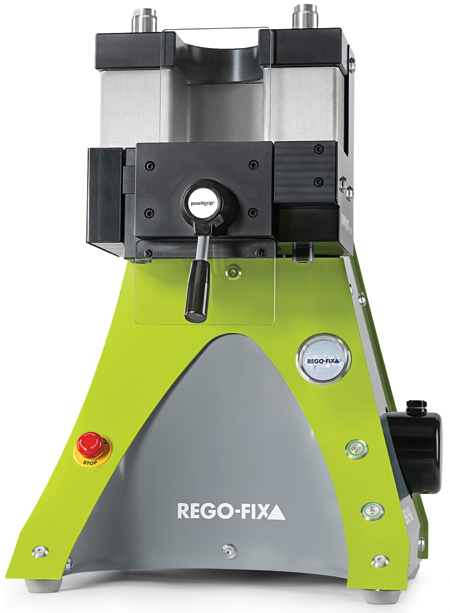

Current PG tool setting units-including the PGU 9500 and the enhanced new PGU 9800-use up to nine tons of clamping pressure to secure a tool in less than 10 seconds. To handle larger tools, the all-new PG 48 will rely on a specially made PGU machine that can use up to 16 tons of pressure.
Like all REGO-FIX PG tool setting technologies, the new PG 48 tool setter will use neither heat nor hydraulics, so tools will be ready for use immediately after the clamping cycle concludes.
REGO-FIX minimum quantity lubrication PG-MQL collets apply a light spray of an air and oil mixture directly to cutting zones. This spray not only lubricates cutting tools to extend their working lives, but it also minimizes coolant use to reduce costs and effectively evacuates chips to prevent scrap and ensure quality part surface finishes.
For the highest gripping force of any REGO-FIX coolant collets, form-fit PG CoolBore Collets (PG-CB) deliver high-pressure peripheral coolant for optimized chip removal in medium to high-performance applications. These collets change out quickly with other PG coolant collets and provide maximum coolant output pressure for PG 25 (including short collets) and PG 32.
For various grinding applications, REGO-FIX now offers its PG ER collets for clamping grinding pins. "The line of collets ensures runout of less than three microns at 3xD and provides exceptional vibration damping for superior surface finishes," said a company spokesperson.

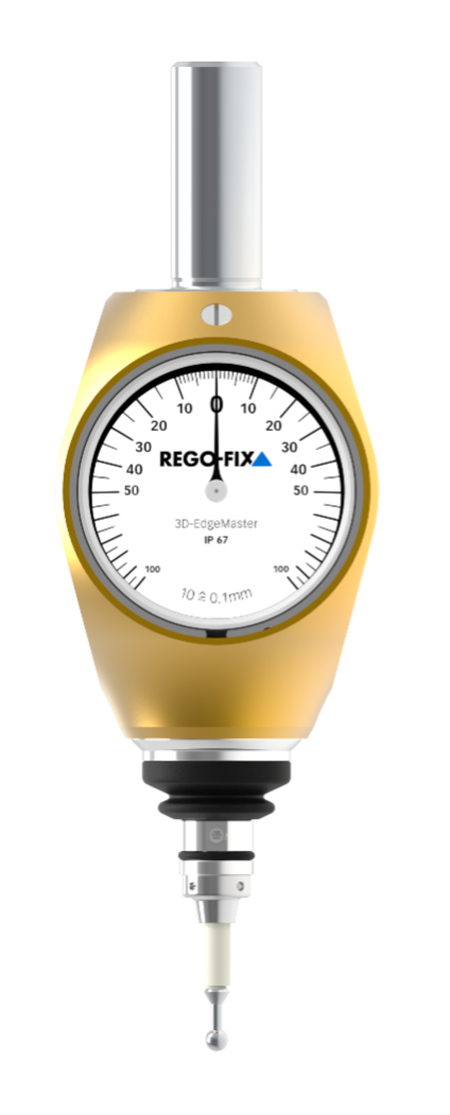

To add REGO-FIX precision to set-up measurements, ergonomic 3D-EdgeMaster centering devices shorten set-up time and provide part accuracy in an IP 67-compliant shockproof and splashproof design for demanding applications. Designed to set zero points, probe reference edges and workpieces, calibrate measuring paths, center machine axes and determine bore centers, these new devices feature repeating accuracy of ≤0.01 mm. 3D-EdgeMaster is available in metric and inch sizes and with short or long probes, all individually serial numbered, with fully traceable inspection and performance certification for demanding industries.
"Shops can minimize spindle damage risks and maximize process reliability with MasterBar test arbors, available with HSK, steep-taper ST, BT and CAT interfaces for correct machine tool set-up and spindle precision with every use," said the spokesperson. "Ground to the same exacting specifications as REGO-FIX toolholding products and supplied with full technical certification, these devices check spindle runout, spindle and arbor alignment and arbor length to boost part quality, reduce scrap and recheck for changes in runout and parallelism after a crash."
For more information contact:
REGO-FIX Tool Corporation
4420 Anson Blvd.
Whitestown, IN 46075
800-REGO-FIX / 317-870-5959
info.usa@rego-fix.com
www.rego-fix.com
SOUTHTEC Booth 416
