Fully Tool-Changeable Electric Spindles Increase Machine Tool Speed
April 1, 2021

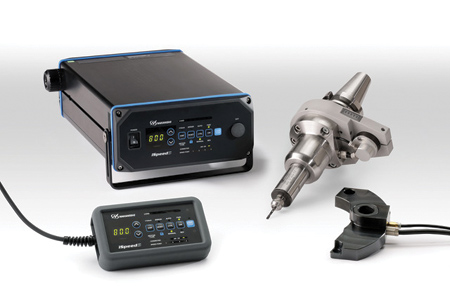

NSK America Corporation offers the iSpeed5 System, a fully tool changeable, electric, high-speed motor/spindle.
"The iSpeed5 is a 60,000 or 80,000 RPM, 350 watt, brushless DC electric system that eliminates the need for any operator intervention by using a special designed connection under that machine spindle that can prevent coolant, chips, dust and other machining debris from contaminating the stop block," said a company spokesperson. "No longer is there a need for operator intervention to connect or disconnect the high-speed motor/spindle. With the iSpeed5, the availability for high-speed and micro machining for both short or long periods of operation, as well as lights-out manufacturing, are possible."
The iSpeed5 features precision ceramic bearings for high-speed performance, and spindle accuracy of less than 1 micron (.00004) TIR for all micro milling, drilling and grinding applications. The dry air purge system is suitable for graphite machining as well as surfacing for mold finishing. A wide variety of tapers is available.
The iSpeed5 control unit features a motor protection system as well as an input/output interface to communicate with the CNC controller. The Handy Controller allows hand-held operation of the system from a distance. This device features all of the same buttons and functions as the main controller, including speed adjustment, reverse and reset should the controller be mounted remotely. The iSpeed5 Stop Block integrates with the iSpeed5 controller in order to make automatic tool change possible. A variety of generic and custom stop blocks are available for all machine models.
For more information contact:
NSK America Corp.
1800 Global Parkway
Hoffman Estates, IL 60192
847-843-7664
info@nskamericacorp.com
www.nskamericacorp.com
