Easy to Use Plasma Table



Tormach Inc., a supplier of compact CNC machines, has added a plasma table to its CNC equipment lineup.

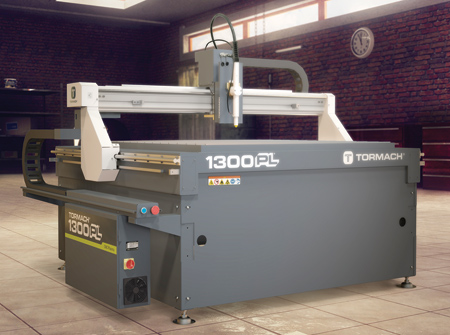

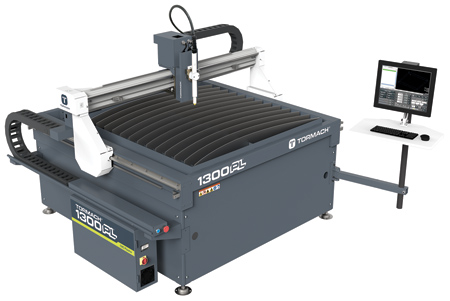

The 1300PL CNC Plasma Cutting Table features XYZ travels of 50" x 51.5" x 3.9". It can easily accommodate 4' x 4' sheets of metal.

Features include:

  • User-friendly Tormach PathPilot control software
  • Floating head with digital torch height control
  • Standard breakaway torch with collision detection
  • Closed-loop servo motors for reliable accuracy and fast speed (1,000 IPM travel, 400 IPM cuts) and acceleration (30 in./sec/sec)
  • Rack and pinion drive
  • Modular electrical system with fully replaceable control cables
  • Integrated water table mounted on sliding rails, ideal for cutting larger parts
  • Direct DXF import
  • Material picker with pre-loaded speeds and feeds
  • Liftgate ready, no forklift required for delivery.

Tormach recommends a Hypertherm torch for use with the 1300PL. Entry-level 1300PL packages include the torch, which features Digital Torch Height Control and a magnetic breakaway safety feature with collision detection. The 65 amp plasma cutter works well for cuts up to 1" thick material, and the table can hold up to 750 lbs.

"We are excited to add the 1300PL to our lineup of CNC products," said Lori Morrison Bufalo, Marketing Director at Tormach. "It is an advanced yet easy-to-use machine at a very attractive price point."

A video of the 1300PL is available at youtu.be/IbF3SGyZpdU.

For more information contact:

Tormach Inc.

1071 Uniek Drive

Waunakee, WI 53597

608-849-8381

info@tormach.com

www.tormach.com
