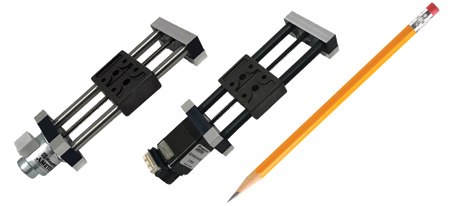

MiniSlide MSA Series of Linear Actuators



Haydon Kerk Pittman, a business unit of AMETEK Advanced Motion Solutions division, offers the MiniSlide MSA series.

"Today more than ever, lab equipment and automation designers must fit sophisticated motion control solutions into compact spaces," said a company spokesperson. "These device makers need solutions that are uniquely suited for their application while being economically priced. The MiniSlide can solve these demanding challenges while reducing the time, cost and performance concerns associated with developing guided linear assemblies from individual components. The MiniSlide assemblies are highly configurable, simple to integrate and offer a compact low profile with a stable platform, all at an economical price point."

The MiniSlide series offers design flexibility with two motor options: a 21 mm, size 8 hybrid linear actuator and a 20 mm, 19000 series can stack linear actuator. There are nine different lead screw options ranging from ~0.3 mm to 8 mm providing resolution down to 0.001524 mm (0.00006") per step, axial forces up to 45N and accommodating stroke lengths of up to 150 mm. Finally, four different lubrication options, a rotary encoder feedback option, as well as English or metric mounting hardware standards are available.

The MiniSlide series provides pre-engineered versatility for a variety of single and multi-axis applications. "By providing a compact, cost effective and highly customizable linear motion solution, the MSA is ideally suited for use in lab equipment applications such as sample handling, spectrometers and chromatographers, molecular analyzers, optical microscopes and other inspection equipment," said the spokesperson.

For more information contact:

Haydon Kerk Motion Solutions, Inc.

56 Meadowbrook Drive

Milford, NH 03055

603-213-6290

info.haydonkerk@ametek.com

www.haydonkerkpittman.com
