Mini Drill Press/Microprocessor Control



"Programmable mini-drill presses have been on the market for many years for single hole drilling applications where small precision holes are required," said a SERVO Products Co. spokesperson. "Consistently, however, there have been limits to their overall performance and programming capabilities. In addition to limited motor speed/direction control and low torque, the brush motors could wear through a set of brushes in six weeks in continuous use applications."

As a way to deliver maximum performance and reliability, SERVO Products developed its Mini Drill press and the 708-CNC control option. "Unique to the market and made in the USA, the Mini Drill Press and microprocessor-controlled quill feed unit represents a complete re-design to modern technology. It features a brushless DC motor (no carbon dust) with higher RPM, and with the 708-CNC option, precision program control for peck drilling, reaming cycles and deep hole drilling," said the spokesperson.

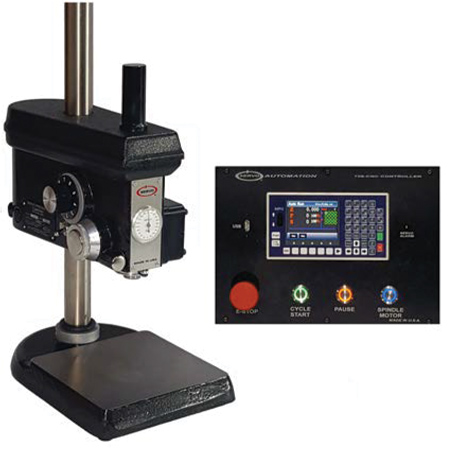

Essentially a complete mini drill press with a brushless motor programmed via CNC panel, SERVO's model 708-CNC offers the ability to download, upload and store hundreds of integrated speed and motion direction programs on one controller.

SERVO mini-drill press features:

  • Brushless DC motor: Suitable for continuous use (24/7) applications where downtime and carbon dust are not desirable, SERVO's Mini Drill Presses with the Model 708-CNC control keeps running without the need to change brushes. It also offers better speed regulation and more torque.
  • CNC panel control: The ability to switch the spindle direction from forward to reverse and back, along with spindle RPM controls, are now the standard on SERVO's Model 708-CNC. The programmable control now integrates spindle RPM, direction and motion control via a true CNC panel.

SERVO mini-drill press key specs:

  • Available with Yukiwa or Albrecht chucks or WW collets for even more precision
  • 12", 19" or offset column and inch or metric calibration
  • Spindle runout achieves high accuracy/precision of .0002" TIR
  • Encoder on the drive motor makes movement repeatable to within .0005"
  • Optional foot switch (M-710) can be added to any SERVO drill press.

For more information contact:

SERVO Products Co.

34940 Lakeland Blvd.

Eastlake, OH 44095

800-521-7359

mail@servoproductsco.com

www.servoproductsco.com
