Compact Turning Centers with a Y-Axis

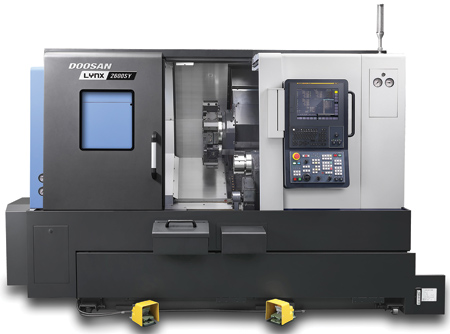

Doosan Machine Tools has introduced the Lynx 2600SY, the latest generation in the Lynx series of compact turning centers with a Y-axis. The new machine incorporates all the design features of the Lynx 2100LSYB but is built on a slightly bigger platform.

"Customer feedback played a large role in the development of the new model. The Lynx 2600SY was designed to provide maximum flexibility and versatility for job shops that want to handle a wider range of projects without stepping up in size to a PUMA Series boxway machine," said a company spokesperson.

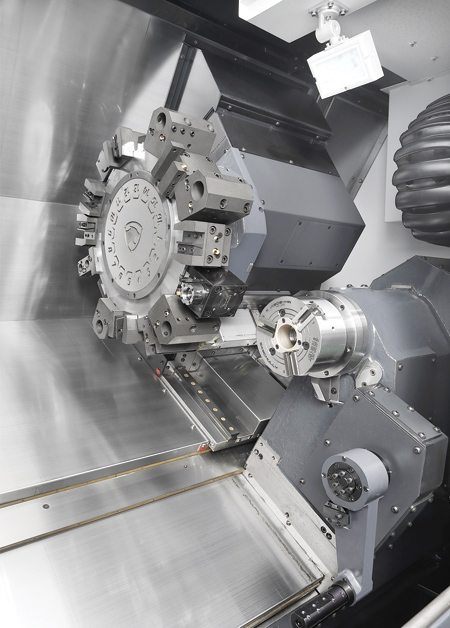

The Lynx 2600SY is designed with a rigid bed structure and incorporates roller type LM guides for all axes. The maximum turning diameter is 14.9" and the maximum turning length is 24". The main spindle incorporates a 10" chuck while the sub-spindle handles either a 6" or 8" chuck size. The main spindle has a speed of 3,500 RPM (25 HP) while the sub-spindle turns at 4,500 RPM (15 HP), making quick work of complex parts. The Y-axis travel is 4.13", and a 12 station servo-driven BMT tool turret with a half index feature (24 positions) is standard.

A new feature on the Lynx 2600SY is the latest controller from FANUC, the 0i-TF Plus, which is available with optional iHMI user interface and specifically designed by FANUC for ease of use. The 0i-TF Plus features 3D part views that offer more detail and are easily viewable on the new 15" touchscreen (previously 10"). The control is equipped with the Doosan EZ guide conversational programming feature but does not take away the traditional G-code programming language.

For more information contact:

Doosan Machine Tools America

19A Chapin Road

Pine Brook, NJ 07058

973-618-2415

DMTA.Marketing@doosanmt.com

www.doosanmachinetools.com
