Newly Enhanced Chucker-Convertible Swiss CNC Lathe

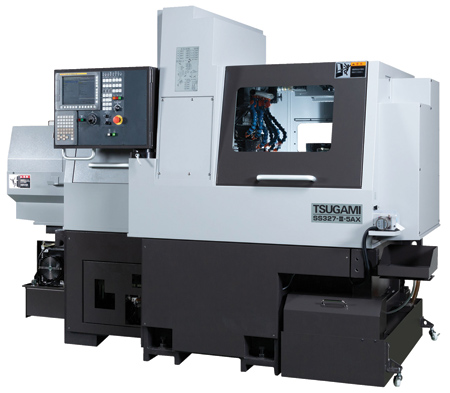

Tsugami/Rem Sales, the exclusive North American importer of Precision Tsugami machine tools, has introduced the newly enhanced Tsugami SS327-III-5AX, 32 mm, B-axis, chucker-convertible Swiss CNC lathe.

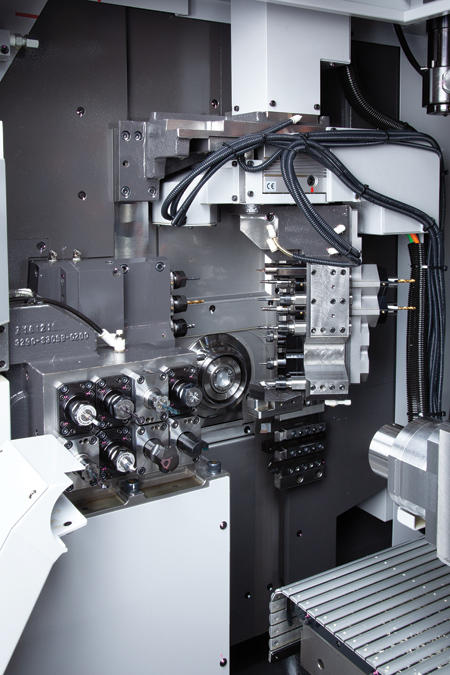

The SS327-III-5AX's servo-driven modular B-axis allows for the cutting of complex parts, complete in a single set-up, while applying the capability for through hole thread whirling or high-speed spindles for small surfacing end mills. The B-axis contains live tools (four front, two rear) that can machine in coordination with the C-axis, providing the ability to cut precise angles and sculpted contours. The B-axis functionality transforms this Swiss-type lathe into a multitasking turning center that can drill, tap and end mill any angle.

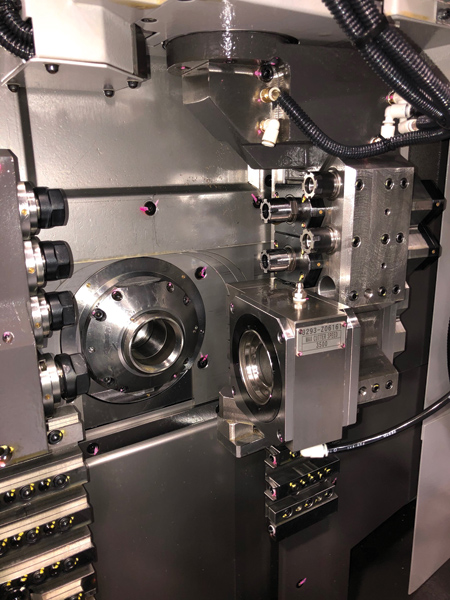

The modular tool zone is engineered to make it easy to change cartridge-type live cross and face tools on the B-axis and the sub side, decreasing changeover time. Multiple angle cuts by the same tool also decreases the total number of tools required. "For machining complex shapes, this is the ultimate Swiss-type lathe," said a company spokesperson.

Enhancements to the Tsugami SS327-III-5AX include larger linear guides, increased ribs in the already solid base casting, a 4 GB data server, thermal displacement compensation sensors throughout and three toggle clamping system.

Specifications:

  • Maximum bar stock: 1.25"

  • Axes: 7
  • Max. headstock stroke with guide bushing: 12.99"
  • Max. headstock stroke without guide bushing: 2.74"
  • Number of tool positions (std/max): 36
  • Number of live tool positions (std/max): 18/20
  • Control: FANUC 31i-B5
  • Main spindle speed: 200 - 8,000 RPM
  • Sub-spindle speed: 200 - 8,000 RPM
  • Live tool speed: 7,000 RPM (B-axis tools), 6,000 RPM (other)
  • Main spindle motor: 3.7/5.5 kW
  • Weight: 8,800 lbs.
  • Footprint W x D x H: 84.6" x 50.3" x 79.1".
