Heavy Loading Made Easy
July 1, 2020

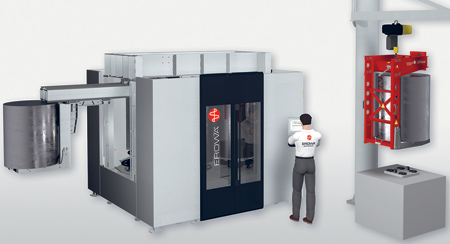

EROWA has expanded on its Robot Easy model range with the Robot Easy 800 for the productive loading and unloading of CNC machine tools.
Workpieces with a maximum weight of 800 kg and a size of up to O850 x 1,000mm can be loaded onto the machine tool. The robot is suitable for moving pallets from the EROWA MTS systems, which are predominantly used for milling and grinding.
The workpiece magazine can be configured with up to 12 magazine positions when using the EROWA MTS 400 workpiece carrier pallets (400 mm x 460 mm). The magazine plates can be rotated, which makes it easier to fit palletized fixtures and tombstones with workpieces directly into the robot magazine. Maximum magazine capacity is 7 tons.
With its compact monobloc design that requires only 20 sq. ft. of floor space, the Robot Easy 800 can quickly be positioned by the machine, installed and made operational. If production needs change, the function and magazine positions can be adapted to suit the requirements.
The stable transfer axis has a reach of 2,000 mm from the robot's outer edge. This leaves sufficient space for manual work on the machine. The robot can serve machine table heights between 765 mm and 1,200 mm.
For more information contact:
EROWA Technology, Inc
2535 S. Clearbrook Drive
Arlington Heights, IL 60005
847-290-0295
info@erowa.com
www.erowa.com
