Live Tools for Citizen Swiss-Style Machine

"When high quality live tooling with high accuracy is needed for Citizen Swiss-style machines, GenSwiss offers its PCM spindles and attachments," said a company spokesperson.

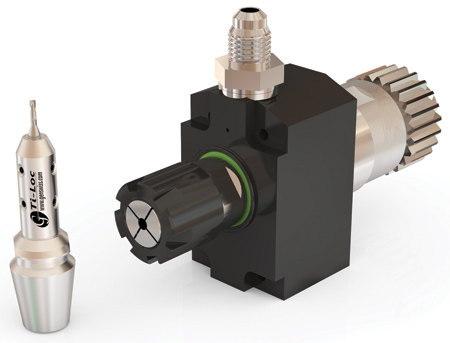

If an application for a Citizen live tool engineered and designed with coolant-through capability is required, GenSwiss recommends the GSC-1310-HP cross or endworking spindle. When paired with a G1/8 fitting, the GSC-1310-HP complements the wide availability of coolant-through plumbing hoses, connections and manifolds commonly found in the U.S. market. Up to 2,000 PSI of high pressure coolant can be piped through a coolant-through drill or endmill, resulting in chip evacuation and optimum edge control. The GSC-1310-HP accepts ER16 collets, has a 1:1 RPM output and fits a wide variety of Citizen machines, including the A20, A32, L20, L32, M20, and M32 models.

The GSC-1310-HP can be paired with a GenSwiss coolant-through Ti-Loc mill and drill extension, allowing coolant-through capability regardless of the tool used, while also offering TIR of less than 0.0002" and enabling micro tools to clear the guide bushing. The various Ti-Loc set and stop screws enable repeatable positioning of I.D. tools, with the Ti-Loc itself being hot swappable with other Ti-Loc mill and drill extensions that are preset with I.D. tools.

"The GSC-1113 is another unique application offered only by GenSwiss. For machinists with a Citizen A32, L20, L32, M20 or M32 Swiss-style machine, the GSC-1113 offers the same accurate spindle concentricity, hardened and ground gearing, and maintenance friendly designs of the other PCM live tooling options but accepts an ER20 collet for larger tooling," said the spokesperson. GenSwiss Ti-Loc mill and drill extensions also come in ER20 variations, pairing well with the GSC-1113 spindle.

For more information contact:

Genevieve Swiss Industries, Inc

6 Old Stage Road

Westfield, MA 01085
