Hard Jaws with Diamond-Shaped Serrations
May 1, 2020

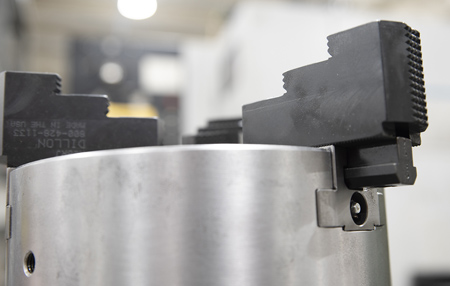

Hard jaws from Dillon Manufacturing, Inc. feature diamond-shaped serrations for increased pull-down effect, which reduces part slippage and push back from using a bar feeder. The aggressive serrations on the gripping surfaces are also suited for cast parts, scaly parts or parts with imperfections.
The jaws are manufactured of 8620 steel and case hardened with precision ground locating surfaces. They are black oxide coated for corrosion resistance. The hard jaws are available in one-step or two-step sets and are reversible for O.D. or I.D. chucking. Only one set is necessary to cover a wide clamping range.
Dillon hard jaws are available in standard sizes from stock and in different mounting configurations, including serrated, T&G, Acme and square serrated key types, to fit all brands of chucks. Dillon chuck jaws are versatile with multiple radiuses for both inside and outside clamping, making them suitable for any size run. Dillon also offers special or modified hard jaws with quick turnaround time.
For more information contact:
Joseph Shouvlin
Dillon Manufacturing, Inc.
2115 Progress Drive
Springfield, OH 45505
800-428-1133
sales4@dillonmfg.com
www.dillonmfg.com
