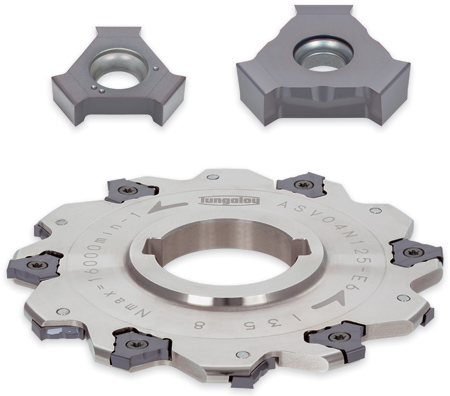

Light Cutting Inserts Offer Reliability in Narrow Slot Milling



Tungaloy has expanded its TungThinSlit line of indexable slot milling cutters to include inserts featuring F (sharp) cutting edge preparation.

"The TungThinSlit slot milling cutter consists of indexable inserts with a unique structure," said a company spokesperson. The double-sided insert can be used for either the right- or left-hand cutting edge reversibly. Six cutting edges reduce tool costs as well as inventory management.

TungThinSlit is capable of milling narrow slots of widths ranging from 4 mm to 8 mm (from .157" to .315"), which are often seen on automotive parts, such as steering knuckles and shafts. "These components usually lack rigidity or are often fixed in weak set-ups, constraining the application from improving the feed per tooth," said the spokesperson. "In addition, in the slim slot milling range that TungThinSlit is capable of, the ratio of the radial engagement of the cutter in relation to the cutter diameter, or ae/Dc tends to be less than 15%, producing extremely thin chips of less than 0.02 mm (.00079 in.) chip thickness."

"Manufacturers usually go to carbide brazed slot cutters with sharp positive cutting edges to reduce cutting forces and improve chip flow for machining stability because conventional slot milling inserts with honed cutting edges create vibrations and burrs on the workpiece," continued the spokesperson. "The new F-edged TungThinSlit inserts reduce the cutting forces, eliminating vibrations and burr formations while maximizing surface finish and productivity."

For more information contact:

Tungaloy America, Inc.

3726 N. Ventura Dr.

Arlington Heights, IL 60004

888-554-8394

info@tungaloyamerica.com

www.tungaloyamerica.com
