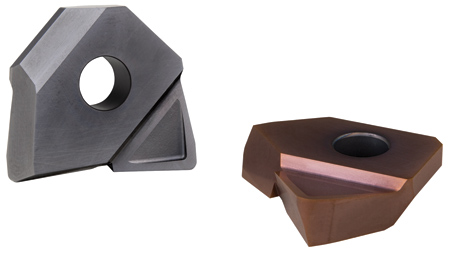

SBD Inserts for Faster Back Draft Milling



"Dapra's SBD series inserts were designed to help operators finish their back draft jobs faster, with greater accuracy and fewer insert changes for maximum performance in long-reach, low-pressure finish cutting," said a company spokesperson.

SBD inserts, an addition to Dapra's EDGE2 SBN finishing system, are interchangeable with SBN series twin-edge ball nose inserts. "A positive-rake cutting wiper allows for larger stepdowns and faster feedrates than traditional back draft-style inserts," said a company spokesperson. "Ultra-robust carbide insert thickness provides optimum rigidity and heat control for enhanced tool life, and strong insert seating accepts cutting forces with minimal deflection to eliminate insert movement."

These inserts are available in .500" to 1.000" diameters. Dapra offers a choice of two new premium coatings for SBD: TS (AlTiN-based) for general purpose machining in most steels, irons and 400 series stainless steel; and HM (AlCrN-based) for hardened steels, high-temperature alloys and tough 300 series and PH stainless steels.

For more information contact:

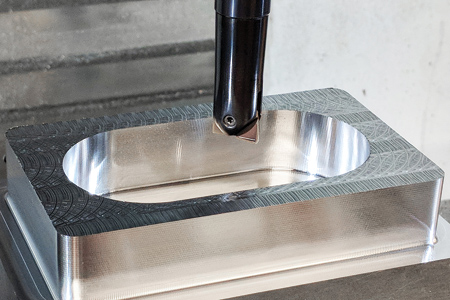

For more information and to view demo footage of constant-ramp profiling on an inside pocket and outside profile, plus plunge finishing on a tapered wall, visit: www.dapra.com/sbd.

For more information contact:

Dapra Corporation

66 Granby Street

Bloomfield, CT 06002

800-243-3344 / 860-242-8539

info@dapra.com

www.dapra.com
