Long, Heavy Parts Production

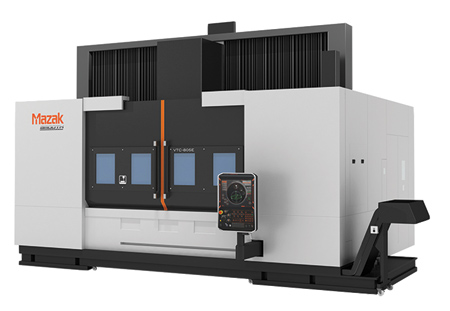

The Mazak VTC-805E Vertical Traveling Column Machining Center is designed to bring high versatility and productivity to shops needing to tackle long and/or heavy parts. "The machine combines an increased Y-axis stroke, long bed/table size, high spindle speed and torque and Mazak's new SmoothG CNC control for efficient, powerful machining," said a company spokesperson.

For manufacturers needing as much Y-axis travel as possible, the VTC-805E provides an extended Y-axis travel of 32" as a cost-effective alternative to a bridge-style machine. The machine's fixed table measures 82.7" x 32.3" (2,100 mm x 820 mm), while its moving column design provides 69.3" X-axis and 28.3" Z-axis.

With an optional center partition, it is possible to transform the VTC-805E's table into two separate work areas to process parts on one side, while operators load/unload parts on the other for an overall reduction in cycle times. A turret-style magazine accommodates 40 tools for longer periods of uninterrupted production as well as for more part-processing versatility.

Mazak equipped the VTC-805E with a 30 HP, CAT 50-taper, 6,000 RPM spindle that machines a variety of materials, including titanium, aluminum, steel and cast iron. For greater power and speed requirements, Mazak offers an optional 40 HP, CAT 50-taper, 10,000 RPM spindle.

The VTC-805E features the new MAZATROL SmoothG CNC that makes it easy to generate programs for off-centerline machining as well as angled drilling, milling and tapping operations. Several innovative programming, performance and monitoring functions bring enhanced speed and accuracy to complex part production. Advanced hardware, including a tilting CNC panel and intuitive multi-touch control screen, allows for ease of use while an SD card stores up to 32 GB of program data.

For more information contact:

Tasha Riddell

Mazak Corporation

P.O. Box 970

Florence, KY 41022-0970

859-342-1700

triddell@mazakcorp.com

www.mazakusa.com

Southwest

Dana R. Scott

Mazak SW Technology Center

10950 Greenbend Blvd.

Houston, TX 77667

281-931-7770

dscott@mazakcorp.com

www.mazakusa.com

LA

Richard Cahn

Dixie Mill Machine Tools Co.

901 Tchoupitoulass Street

New Orleans, LA 70152

504-525-6101

800-462-9519

rcahn@dixiemill.com

www.dixiemill.com

OK, AR

Butch Cumminsky

David James

Machinery Resources Inc.

5550 South 94th East Avenue

Tulsa, OK 74145

918-622-6495

800-448-1878

butch@mritul.com

www.mritul.com

N. TX

Chris Papke

Mazak Corporation

935 S. Kimball St., Ste. 151

Southlake, TX 76092

800-642-6110

El Paso, TX

Felipe Arvizo

Magnum Precision Machines Inc.

12025 Rojas Dr. Suite A

El Paso, TX 79936

915-856-7900

farvizo@magnumep.com

www.magnumprecisionmachines.com

NM

Chris Edgar

Magnum Precision Machines, Inc.

8448 Washington Place NE

Albuquerque, NM 87113

505-345-8389

cedgar@magnumabq.com

www.magnumprecisionmachines.com

Southeast

Dave Kennedy

Mazak Southeast Technology Center

1075 Northbrook Parkway

Suwanee, GA 30024

678-985-4800

dkennedy@mazakcorp.com

www.mazakusa.com

TN

Dennis McCurry

Pinnacle Machine Tools, Inc.

5912-A Toole Drive

Knoxville, TN 37919

865-951-0260

mccurry@pinnaclemachine.net

AL

Jerry Edwards

Pinnacle Machine Tool Inc.

141 Nick Fitcheard Road

Huntsville, AL 35806

256-852-0900

edwards@pinnaclemachine.net

NC, VA

Rick Smith

MachineTech, Inc.

8100-J Arrowridge Blvd.

Charlotte, NC 28273

704-665-6301

rick@machinetechcnc.com

www.machinetechcnc.com

GA, SC

Tim Kramer

Premier Engineering Co.

1635 Lakes Pkwy. Ste. U

Lawrenceville, GA 30043-5858

678-442-8382

tim@premierengineering.com

www.premierengineering.com

MS

Richard Cahn

Dixie Mill Machine Tools Co.

901 Tchoupitoulass Street

New Orleans, LA 70152

504-525-6101

rcahn@dixiemill.com

www.dixiemill.com

FL

Mike Hessney

Joe Selway

Unbridled Technologies

P.O. Box 344

Brooksville FL 34605

888-334-8402

info@utechcnc.com

www.utechcnc.com

Northeast

New England, E. NY, NJ

Steve Wilkins

Mazak Northeast Technology Center

700 Old County Cir.

Windsor Locks, CT 06096

800-436-8900 / 860-292-4400

SWilkins@mazakcorp.com

www.mazakusa.com

E. PA, MD, DE

Jim Rutan

Mazak Mid Atlantic Office

1275 Glenlivet Drive

Allentown, PA 18106

jrutan@mazakcorp.com

www.mazakusa.com

W. NY

Bill Miller

A.W. Miller Technical Sales

East Aurora, NY

716-652-8282

bmiller@awmiller.com

www.awmiller.com

W. PA

Russ Weis

A.W. Miller Technical Sales

3 Tara Drive

PO Box 220

Harmony, PA 16037

724-453-1690

rweis@awmiller.com

www.awmiller.com

Midwest

Kevin Bates

Mazak Midwest Technology Center

300 East Commerce Drive

Schaumburg, IL 60173

847-885-8311

kbates@mazakcorp.com

www.mazakusa.com

ND, SD, MN

Joel Lundin

Tony Bailey

Northwest Machine Technologies, Inc.

20851 Commerce Blvd.

Rogers, MN 55374

763-493-3660

tbailey@nwmtec.com

www.nwmtec.com

NE, W. IA

Duane Ohlrich

Industrial Systems & Supply Inc.

2760 E. 29th Avenue

Columbus, NE 68601

402-564-4445

ohlrich@industrial-systems-supply.com

www.industrial-systems-supply.com

E. IA

Kevin Bates

Mazak Midwest Technology Center

300 East Commerce Drive

Schaumburg, IL 60173

847-885-8311

kbates@mazakcorp.com

www.mazakusa.com

MO, S. IL

Bill Summers

Municipal Tool & Machinery Co.

2465 Rock Island Blvd.

Maryland Heights, MO 63043

314-994-9905

bsummers@municipaltool.com

www.municipaltool.com

KS, W. MO

Nick Shelton

Concept Machinery -

A Shelton Machinery Company

6319 W. 110th St.

Overland Park, KS 66211

913-387-4413

nshelton@conceptmachinery.com

www.conceptmachinery.com

WI

Mike Cekanor

Machinery Systems North

3280 Gateway Rd.

Brookfield, WI 53045

262-781-4850

mikec@machsys.com

www.machsys.com

IL, N.W. IN

Eric Hilliard

Machinery Systems Inc.

614 East State Parkway

Schaumburg, IL 60173

847-882-8085

www.machsys.com

E. MI

Peter Addy

Addy Machinery Co.

36055 Groesbeck Highway

Clinton Township, MI 48035

586-741-3000

800-ADDY-NOW

peter@addymachinery.com

www.addymachinery.com

W. MI

Peter Addy

Addy Machinery Co.

3757 Broadmoor Ave SE, Ste. A & B

Grand Rapids, MI 49512

800-AddyNOW

peter@addymachinery.com

www.addymachinery.com

S. OH

Greg Papke

Mazak Corp.

8025 Production Drive

Florence, KY 41042

859-342-1700

gpapke@mazakcorp.com

www.mazakusa.com

IN, KY

Nick Shelton

Shelton Machinery, Inc.

9900 North by Northeast Blvd.

Fisher, IN 46037

317-845-5588

www.sheltonmachinery.com

N. OH

Frank Gibbons

Numerequip

4810 Briar Road

Cleveland, OH 44135

216-265-0400

fgibbons@numerequip.com

www.numerequip.com

West

CO, E. WY

Randy Breitenbach

Action Machinery International

4950 Oakland Street

Denver, CO 80239

303-532-2900

randy@action-machinery.com

www.action-machinery.com

WA, OR

Mark Harris

CNC Machine Services, Inc.

7808 184th St. SE

Snohomish, WA 98296

425-788-4500

mharris@cncmachineservice.com

www.cncmachineservice.com

N.ID

Orville Eide

Dependable Machine

88 W Orchard Ave

Hayden, ID 83835

866-967-0146

www.dmi-cnc.com

AZ

Chris Edgar

Magnum Precision Machines

3614 E. Southern Ave. #1

Phoenix, AZ 85040

602-431-8300

cedgar@magnumabq.com

www.magnumprecisionmachines.com

UT, S. ID, MT, W. WY

Clark Smith

Smith Machinery Company

41 W. Guest Avenue

Salt Lake City, UT 84115

80l-263-6403

csmith@smithmachinetools.com

www.smithmachinetools.com

S. CA

Richard McCauley

Mazak West Regional Headquarters and

Aerospace Technology Center

1333 West 190th Street

Gardena, CA 90248

310-327-7172

rmccauley@mazakcorp.com

www.mazakusa.com

N. CA

David Lindenmuth

Mazak San Francisco Sales and

Technical Center

1497 N. Milpitas Blvd.

Milpitas, CA 95035

408-941-2240

dlindenmuth@mazakcorp.com

www.mazakusa.com
