Redesigned 5-Axis Gundrilling Machine Provides Versatility
May 1, 2017

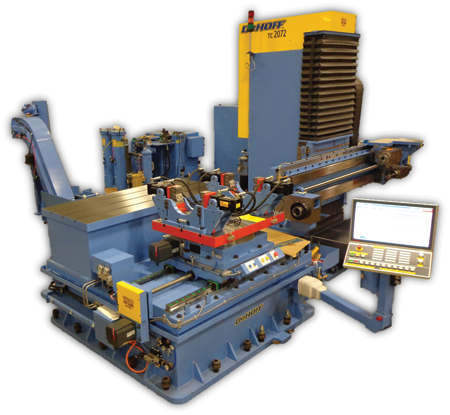

The redesigned DeHoff 2072TC is a gundrilling machine with 5-axis capability. The gundrilling spindle is mounted on a traveling column to provide the X-axis and Y-axis movement. A CAT 40 spindle is also mounted on the traveling column to enable secondary operations like milling and tapping. The machine is ideal for drilling complex hole patterns, like those seen in heat exchangers, manifolds and molds.
The 2072TC has a 2-inch (50.8 mm) gundrilling capacity and a 72-inch (1,829 mm) slide travel. The traveling column provides 60 inches (1,524 mm) of X-axis travel and 46 inches (1,168 mm) of Y-axis travel. Workpiece fixturing options include a stationary T-slot table and a rotary table with self-centering hydraulic vises. The rotary table provides B-axis rotation, and is mounted on a W-axis slide to provide clearance when rotating a long workpiece. Load capacity for the entire worktable is 9,000 lbs. (4,082 kg).
The machine features a cast iron drill head base with hardened and ground steel box ways, plus hand-scraped and fitted saddle, gibs and straps (versus linear guide ways and milled surfaces). "This results in superior vibration damping, extended tool life and improved accuracy and surface finish," said a company spokesperson. Standard elements are also included on the DeHoff 2072TC, such as a high-pressure coolant system and Beckhoff controls with G-Code programming capability.
DeHoff multi-axis gundrilling machines are built-to-order by Kays Engineering in its Marshall, MO, facility.
