Carbide Sawing Machine with 4" Capacity
February 1, 2017

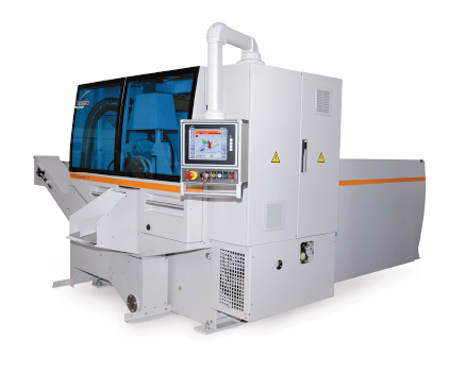

The Kasto Model KASTOgripspeed C10 is a CNC controlled circular sawing machine with a 4" round capacity that uses thin kerf "one-way" carbide or cermet tipped saw blades. This fully automatic model features an inclined loading table for round or square material, trim cutting of the incoming bar and separation of the trim cuts and remnant ends from the cut to length pieces. Cut piece accuracy is assured through the use of a heavy-duty CNC controlled gripper feed. The saw blade guidance consists of three sets of carbide pads.
A power driven brush with automatic wear compensation helps to eliminate the possibility of chips being carried through the cut. The operator interface panel features a touchscreen and a material library that helps to assure fast and convenient setting of all machine functions. The saw carriage traverses on an inclined dual linear guidance system so that any vibration is eliminated and an optimal approach to the material is provided. The saw and handling equipment is completely enclosed to meet all existing safety codes. All access doors are electrically interlocked to stop the machine when opened.
For more information contact:
Klingelhofer Corporation
165 Mill Lane
P.O. Box 1098
908-232-7200
Mountainside, NJ 07092
klingelhofercorp@aol.com
www.klingelhofer.com
