Fast Machine Leveling, Alignment
February 1, 2017
The Tru-Lign system is designed to quickly and accurately level and align machine tools, minimizing down time.

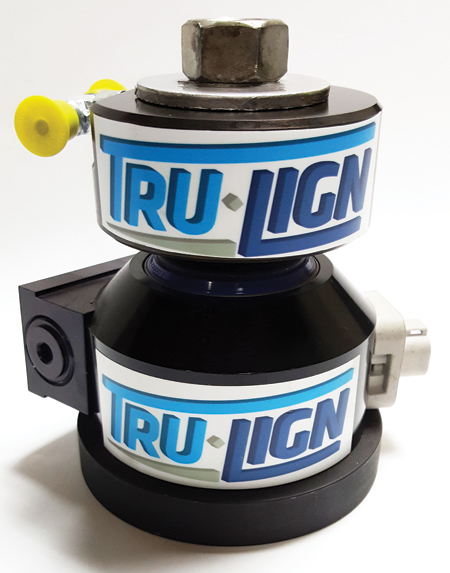

Tru-Lign is a patented micro-hydraulic automated machine tool alignment system that replaces standard mechanical jacks. Hydraulic cylinders are placed under the machine, and Tru-Lign software allows the operator to adjust one, several or all of the pads at once via a control panel. Once the machine is leveled and aligned, each cylinder is mechanically locked and pressure is removed to create a solid mechanical joint to the floor. Tru-Lign is designed to provide accuracy greater than .0001". The system keeps detailed records of all adjustments.

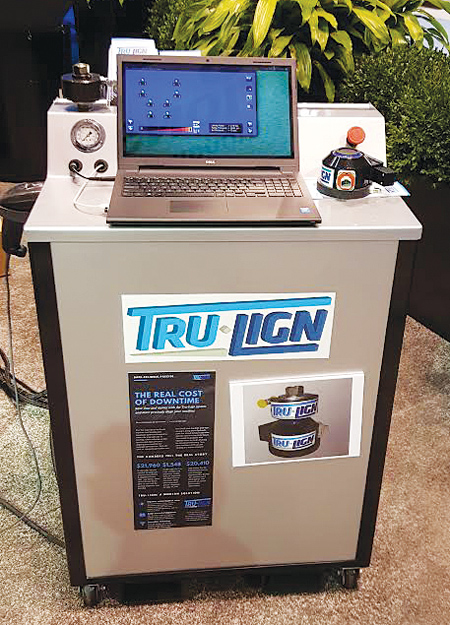

The Tru-Lign system offers three cart configurations to suit a variety of machine tool sizes. The system is modular, allowing one cart to service an entire shop.
For more information contact:
Y3DE LLC
18308 W 79th St. S
Viola, KS 67149
316-208-7283
askus@tru-lign.com
www.tru-lign.com
