T-Based Machining Centers
January 1, 2016

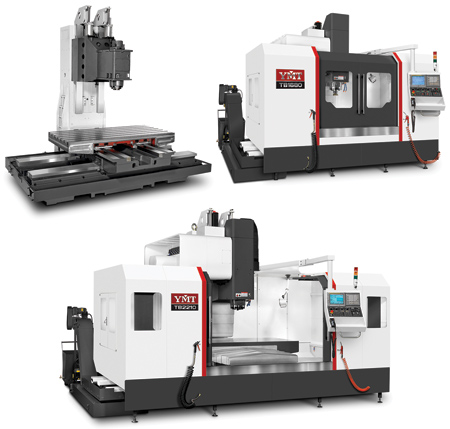

The TB-Series vertical machining centers (VMCs) are designed for industries that demand heavy machining applications such as automotive, mold shops, job shops and aerospace.
With the one-piece T-base design the X-axis is underneath the Y-axis slide way. This means there is no table overhang along the full X travel of the machine.
The heavily ribbed Meehanite casting is built for durable, rigid support and the extra wide box ways are designed for cutting stability and accuracy.
YMT TB-Series structural design also offers a small machine footprint and a chip disposal system.
The YMT TB-Series offers machine X travel of 47" to 86", and up to 39" for Y travel. A standard CT-50 taper 35 HP two range geared spindle that has 6,000 RPM deploys precision angular contact bearings of extra rigidity on both axial and radial for very heavy cutting requirements. Coolant through the three axes ball screws is standard.
For more information contact:
YMT Inc.
260 N. Palm St.
Brea, CA 92821
714-879-1556
info@ymtcnc.com
www.ymtcnc.com
