Low Profile Lift Table with Built-In Propulsion
January 1, 2016

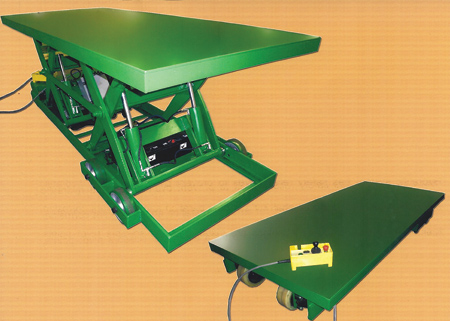

Air Technical Industries offers a Low Profile Self Propelled Lift Table. The propulsion system, power remote steering, lifting mechanism, wheels and batteries are all built into it like a shoebox and are completely self-contained.
Featuring updated technology, the lift table helps the user lift and transport large and heavy items through narrow aisles, doorways and crowded areas with no physical exertion required by the operator. The unit features a 10,000 lb. capacity. Dimensions are 52" wide x 120" long, lowered height is 14", vertical lift is 60" and raised height is 74".
The unit is flexible and can transport and steer with a load in the raised position. Mobility is provided by roller-bearing mounted polyurethane wheels. Propulsion is hydraulic, as is lifting and power steering. Propulsion has variable speed control and automatic braking system. The battery charger can be built in or it can be externally installed at a designated charging station.
The hydraulic system has safety relief valves to prevent overloading, and hydraulic cylinders have a chrome-plated shaft for smooth operation and to prevent corrosion. Maintenance-free composite bushings are installed in the scissors pivot points. Wireless remote controls or pneumatic powered hydraulic systems are available for lifts used in hazardous environments.
Low Profile Self Propelled Lift Tables are available in a variety of capacities and sizes. Push button controls improve efficiency, saving time and increasing production while reducing worker fatigue.
For more information contact:
Air Technical Industries
7501 Clover Ave.
Mentor, OH 44060
888-857-6265 / 440-951-5191
ati@airtechnical.com
www.airtechnical.com
