Optical Kit Style Linear Encoder
January 1, 2016

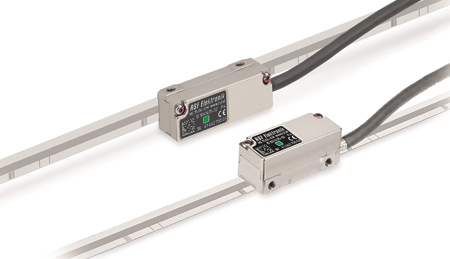

RSF Elektronik has released the MS 15 optical kit style linear encoder with advanced features in a small mechanical profile. Available in North America through parent company HEIDENHAIN Corporation, the MS 15 is suited for motion applications in various industries such as metrology, semiconductor, medical and automation.
The MS 15 optical kit style encoder measures 36 mm x 13.5 mm x 14.8 mm in size, and provides a 40 micron grating pitch on an 8 mm wide steel tape carrier that has a double-stick backing for mounting directly to the machine axis. The measuring tape comes with accuracies of ±5 or ±15 microns per meter and comes in lengths up to 20 meters. The tape allows customers to choose the reference mark, as the marks are printed every 50 mm and a sticker placed on the scale is used to highlight which reference mark is needed.
The tape also features the use of optical limits where separate stickers are placed on the scale that are detected by the reader head which sends the limit signals to the control or readout. A mounting tool is also offered to help install the measuring tape onto the machine axis with precision.
The MS 15 reader head has an advanced online compensation built-in continuously adjusts signal deviations of amplitude, offset and phase over a wide range. This online compensation is designed to reduce interpolation error significantly. The reader head also has a status LED which indicates to the user the mounting condition of the reader head with respect to the scale. The reader head is available with 1 volt peak-to-peak analog output, or a digital TTL output with a resolution down to 100 nanometers. Velocity of the reader head can be up to 10 meters per second.
For more information contact:
HEIDENHAIN Corporation
333 E. State Parkway
Schaumburg, IL 60173-5337
877-887-6431
www.heidenhain.us
