Line of Miniature Linear Motor Positioners

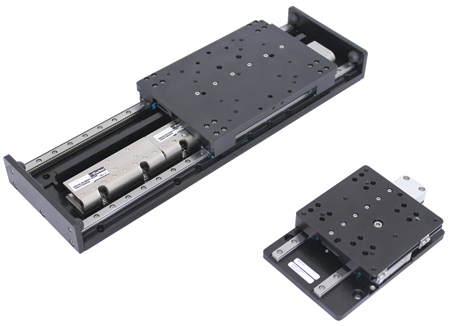

Parker's Electromechanical Division North America offers the mSR (miniature square rail) positioner. The mSR series of miniature, dual square rail guided, linear motor positioners has been engineered to deliver a combination of modularity, flexibility and performance in a compact package.

mSR series standard features include:

• Two form factors (mSR 80 - 80 mm wide x 25 mm tall, and mSR 100 - 100 mm wide x 25 mm tall)
• Standard strokes ranging from 25 mm to 500 mm
• Two center driven linear motor technologies (mSR 80 - ironcore, mSR 100 - ironless)
• Six different encoder options:
  • Value priced 1 micron magnetic incremental with integrated home and limit sensing
  • Optical incremental 1 micron resolution with integrated home and limit sensing
  • Optical incremental 0.1 micron resolution with integrated home and limit sensing
  • Optical incremental 0.01 micron resolution with integrated home and limit sensing
  • Analog Sine/Cosine with integrated home and limit sensing
  • BiSS-C Absolute (mSR 100 only)
• mSR 80 XY without the need for transition plates
• mSR 100 XY without the need for transition plates with standard or carriage to carriage orientation
• mSR 80 to 100 XY without the need for transition plates
• Dowel holes for repeatable pinning.

With the combination of size, high precision and all the features mentioned above, the mSR positioner is designed for a number of high tech industries including life science applications like microscopy or digital pathology, semiconductor metrology applications and electronics manufacturing.
