Hobbing Machine for Production of Mid-Sized Gears
January 1, 2016

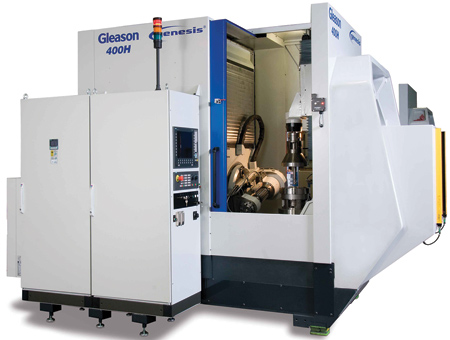

The Genesis 400H Gear Hobbing Machine for workpieces up to 400 mm in diameter and module 8 mm supplements Gleason's line of Genesis hobbing machines in the medium-sized workpiece range. The 400H is designed for the manufacture of gears in truck, agriculture and construction applications as well as universal job shop tasks of similar size and module range.
The 400H features high-speed drives to utilize advanced cutting tools, including high-speed steel and carbide hobsincluding Gleason's new G90 hobs. Designed for dry or wet hobbing, its clean work area ensures that dry chips or cutting residue are effectively removed from the work area.
The machine can be configured individually to respond to customers' application requirements with automatic loading and conveyor options. In addition to regular hobbing processes, the 400H employs process options for form milling/gashing, cutting of multiple/cluster gears, skive hobbing and more. Optionally the 400H can be equipped with a smart solution for integrated chamfering and deburring.
The machine is fitted with either dry or wet chip evacuation systems and the respective dust or mist filter options. The whole work area has been designed with optimum ergonomics in mind and is designed to be easily accessible including a simple tool change mechanism. The integrated power clamping system allows for the adaption of a wide range of workholding systems including the new Gleason Quik-Flex Plus workholding for workpiece changes in less than 30 seconds.
The Gleason Global Service network spare parts centers and over 250 service professionals in major markets worldwide support the 400H. Gleason provides application support, cutting tools and workholding all from a single source.
For more information contact:
Gleason Corporation
1000 University Avenue
P.O. Box 22970
Rochester, NY 14692-2970
585-473-1000
sales-americas@gleason.com
www.gleason.com
