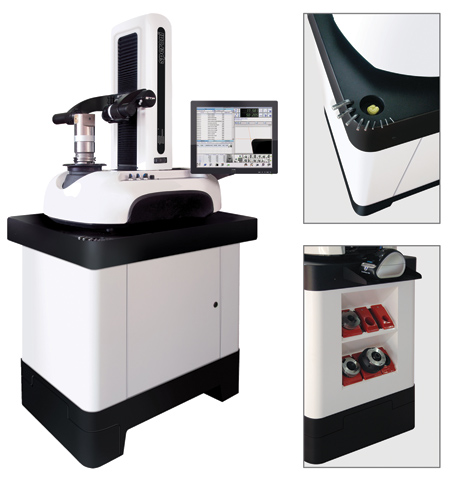

The Speroni MAGIS benchtop tool presetter is available in a CNC version for operator-independent measuring results. Latest-generation electronics and motors are designed for fast movement and repeatable positioning of the X- and Z-axes and spindle, delivering full CNC measuring with uncertainty of the two linear axes of +/- 1 µm. With the MAGIS CNC, users can automatically execute measuring cycles.
The included Speroni original workbench provides an enclosed, yet ventilated, storage area with a lockable door to prevent any tampering with the pre-setter PC. Additional bench features include molded pockets for inserts and screws, storage for various wrenches, and holders for multiple reduction sleeves and other accessories.
Standard features like thermally-stable pearlitic class 40 cast iron construction, a tool management database storing data for unlimited tool assemblies, 270-degree access to the tools while in the spindle and sub-pixel and sub-micron resolution all support accuracy and repetitive positioning and assembly. The MAGIS series is also available with an optional built-in Retention Knob Clamping, which is designed for strong and repeatable seating in the spindle, mimicking that of the machine tool.
The unit also comes standard with a progressive scan CCD camera with telecentric optics with virtual magnification of 45x-with a powerful zoom function for quick zoom up to 120x. Additionally, an Episcopy Front Ring Light system provides a light source for manual inspection of the tool tip/insert on the vision screen. The system is complete with a variable adjustment knob for the proper inspection of the different types of coated inserts.
The MAGIS CNC has a standard X-axis range of -2.00" (-50 mm) to +14.00" (+350 mm) and is available in three column sizes, with 16" (400 mm), 20" (500 mm), and 24" (600 mm) travel in the Z-axis, designed for most offline tool measurement and presetting needs.
