Double Column Surface Grinding Machine
January 1, 2016

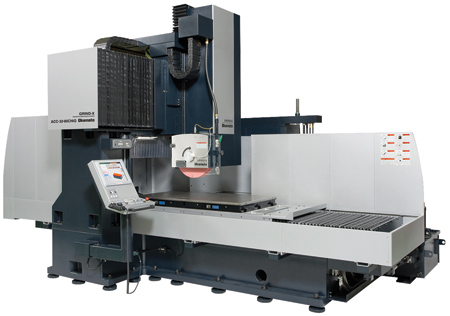

The ACC-32-80CHiQ Surface Double Column Grinder is designed for high precision grinding of large components. It is engineered to provide both the high accuracy and high efficiency needed for mold and die base production applications. "Rigid double column design and construction stands up to prolonged heavy-duty grinding conditions. Double vee table way construction provides continued peak accuracy. With all its capacity, this grinder has a surprisingly small footprint saving valuable shop floor space," said a company spokesperson.
The ACC-32-80CHiQ is built for a consistent high degree of flatness across the entire workpiece surface. An exclusive "Reform" mechanism automatically adjusts for crossrail slide wear without CNC compensation. A Shift-Plunge grinding cycle is designed for fast, efficient stock removal and the grinder's multi-level grinding capability enhances grinding flexibility. The standard powerful 30 horsepower spindle motor and 20" diameter concave grinding wheel handle tough grinding requirements.
The ACC-32-80CHiQ's table size is 32" x 80". Maximum pass width is 40". Maximum distance under standard wheel is 23.5". Table load capacity including chuck is 5,512 lbs. Machine weight is 34,200 lbs. Larger capacity models are available.
Exclusive Okamoto iQ Software simplifies data input. All data input can be completed using only two data screens.
An exclusive BIX High Pressure Coolant System is available as optional. "This system optimizes grinding throughput by enabling up to a 10 time increase in vertical infeed amounts. The BIX System also minimizes wheel clogging thereby extending wheel life," said the spokesperson.
Some of the many standard features include a grinding wheel adapter, hydraulic overhead wheel dresser with dress compensation, dresser stand with diamond tool, automatic oil temperature regulator, spindle speed controller and more. Available options include coolant systems, electro-magnetic chucks, 24" grinding wheel, dynamic balancing apparatus and more.
For more information contact:
Okamoto Corporation
1342 Barclay Blvd.
Buffalo Grove, IL 60089
847-520-7700
www.okamotocorp.com
