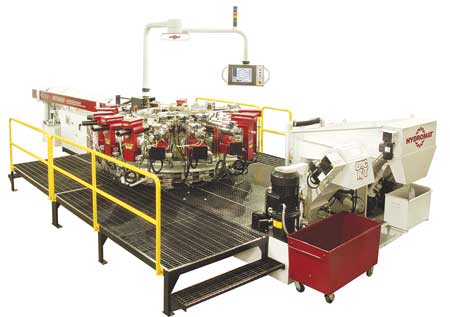

The Hydromat EPIC R/T 32/45-16 Rotary Transfer machine produces precision metalcutting for bar-fed applications. This machine utilizes 16 horizontal tool spindles and the capacity of up to eight vertical tool spindles, featuring up to 24 tools in the cut at once.
The Hydromat EPIC R/T 32/45-16 is a collet style rotary transfer machine for precision metalcutting of stock sizes up to 1.75 inch round, 1.5 inch hex and 1.25 inch square diameters and a length up to 6 inches. This machine utilizes 16 horizontal tool spindles and the capacity of up to eight vertical tool spindles, featuring up to 24 tools in the cut at once. "It also has the rigidity to handle all components and all material types within its work envelope. Non-rotating bar stock provides quiet vibration free operation," said a company spokesperson.
The EPIC R/T 32/45-16 possesses the characteristics of more conventional Hydromats while featuring the latest in CNC rotary transfer technology - Embedded Motion Control (EMC). EMC is a special plug and play control architecture embedded into each toolspindle unit, offering fully independent functionality for each axis motion. "The modular tool spindle system with quick-change pre-settable heads helps the EPIC R/T offer quick and easy changeovers - typically one to three hours. The EPIC R/T 32/45-16, as with all Hydromat machines, supports Lean Manufacturing principles and competitive manufacturing at small, medium and large production quantities," said the spokesperson.
The Hydromat Rotary Transfer machine is a modular system consisting of horizontal and vertical toolspindles rigidly mounted around a precision cast base.
"A wide variety of rotary transfer machines offered by Hydromat give the manufacturing professional the right tool for the right job. The Hydromat machine is the solution for the elimination of secondary operations by producing parts complete from barstock, castings, forgings or cold-formed blanks. The Hydromat machining platform eliminates secondary operations and reduces work in progress. Additional cost reduction occurs due to extremely short remnants and thin cutoff for significant material saving. Also increased productivity is partially due to modular toolspindle system with quick-change presettable tool heads for easy changeover," said the spokesperson.
Typical components suited for machining on Hydromats include automotive ABS and brake systems, fuel, electrical, engine and steering components; plumbing and HVAC valve castings, faucet bodies and gas valves and connectors; hardware power tool and appliance housings; electrical wire connectors and switch bodies; defense and aerospace fuse bodies and instrument housings.
For more information contact:
Kevin Shults
Hydromat, Inc.
11600 Adie Road
St. Louis, MO 63043
314-432-0700 Ext. 4252
kshults@hydromat.com
www.hydromat.com
