The Laser L-Box Marking System
August 1, 2013

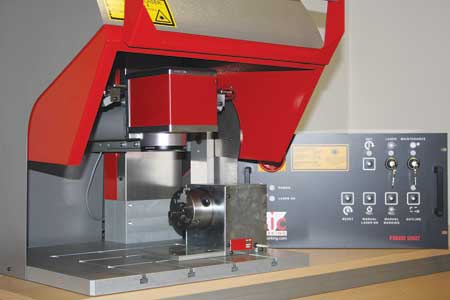

"The Laser L-Box is a compact and easy-to-use marking system that fits easily on a workbench. Equipped with an Ytterbium-doped fiber laser source, its power allows it to produce high-contrast markings in milliseconds. It is designed so that users with a minimum of training (laser safety training) in this technology can operate it intuitively. It is intended for industrial traceability and identification applications as well as for producing distinctive markings (logos, designs, etc)," said a company spokesperson.
"Engineered with robust components, it can produce markings at high rates in any industrial environment. The lifetime of the pumping diodes allows up to 100,000 hours of laser operation reports SIC Marking," said the spokesperson.
The Laser L-Box marks metals of all types (including steel, aluminum, stainless steel and titanium), composites, ceramics and most plastics (depending on the base material, additives and pigments). The viewing window and interior LED lighting allow monitoring of marking operations.

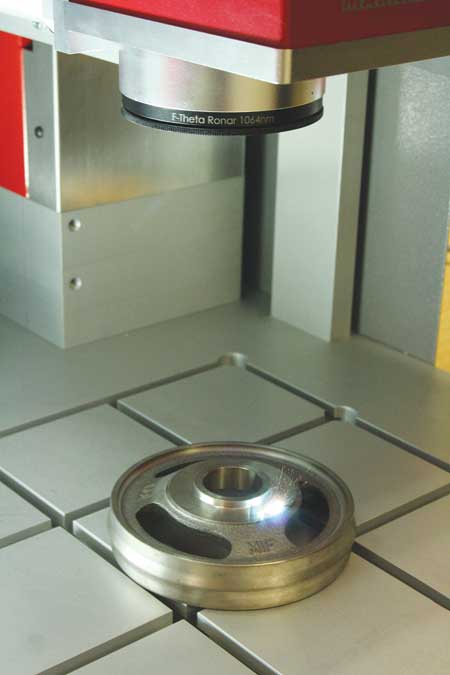

The Laser L-Box features a one-piece design: the beam is generated by the highly compact source then delivered through a fiber optic cable extending all the way to the part via the galvanometer head and lens. Unlike the previous generation of laser-marking machines, no optomechanical adjustments are needed.
The Laser L-Box has many options:
- Rotary D-axis
- Motorized Z-column station for series marking and good ergonomics
- Custom-welded support frame
- Slide or turntable station for series marking.
General technical specifications:
- Marking window: 100 x 100 mm (170 x 170 mm optional)
- Maximum part height: 235 mm
- Maximum part length (operation with door closed): 500 mm
- Possibility of open-door marking for parts measuring over 500 mm in length: trained personnel wearing PPE and working according to instructions
- Working table: 369 x 450 mm
- Optimized footprint: 504 x 765 x 780 mm
- Laser specifications: Ytterbium-doped fiber technology.
- Output powers of the available source: 10, 20, 50 and 100 W (peak power: 10 kW)
- Repetition frequency: 20-200 kHz (pulsed mode)
- Beam wavelength: 1,064 nm
- Length of clad optical fiber: 3 m
- Display of marking location: laser pointers.
Software specifications:
- Windows-based software for editing and creating marking files
- Markings fully configurable via the software for customization of markings
- Marking of alphanumeric characters (wide variety of fonts, all .ttf fonts), logos, images, barcodes, data matrix codes.
Programming interface:
- Windows-based
- Multilanguage: French, English, German, Chinese (addition of other languages possible for custom requests)
- Complete file editor (editing via keyboard and mouse)
- Wide range of flexibility in assigning laser parameters (sweep rate, frequency) to entities
- Import and management of files in Windows formats (.bmp, .plt, .dxf, .ai, .svg, etc.)
- Marking of 1D and 2D (data matrix) codes
- All .ttf marking fonts
- Integrated database functions.
For more information contact:
Laurie Barcaskey
SIC Marking USA
3812 William Flynn Highway
Allison Park, PA 15101
412-487-1165
info@sicmarkingusa.com
www.sicmarking.com
